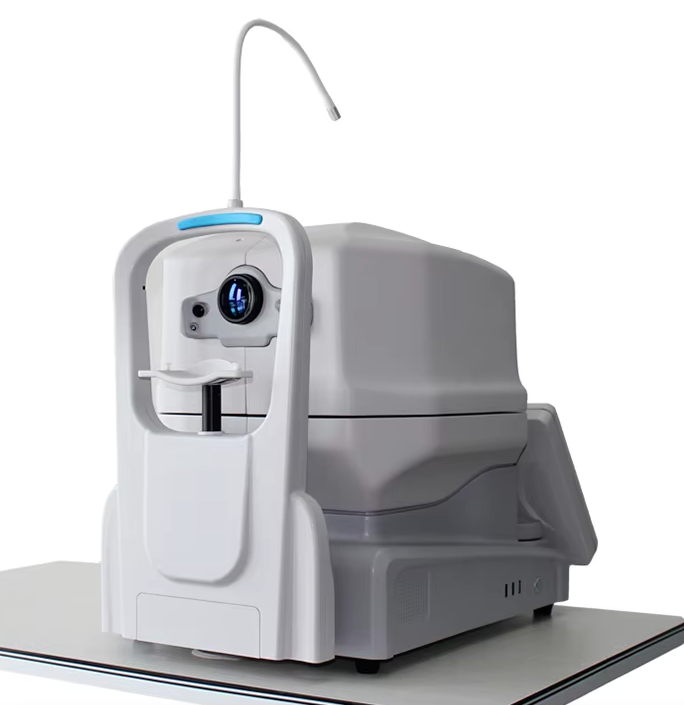

Optical Coherence Tomographer OCT 500
OCT 500 can perform tomographic imaging on the macular area, optic disc, choroid
Product Details
OCT 500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus. OCT500 takes advantage of the high-resolution, non-contact, and non-invasive imaging technique, offers comprehensive screening, diagnosis, follow-up, and efficacy evaluation, furnishes crucial diagnostic support and treatment for various eye conditions
Specification
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 um (in tissue) |
| Transverse resolution | ≤20 um (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3mm |
| OCT light source | 840 nm SLD |
| Operation | 13.3″ touch screen, optional external mouse or keyboard |
| Power supply | 100-240 V, 50/60 Hz |
| Dimensions | 497 mm X 395 mm X 490 mm (LXWXH) |
| Weight | 34 kg (75 Ibs) |
