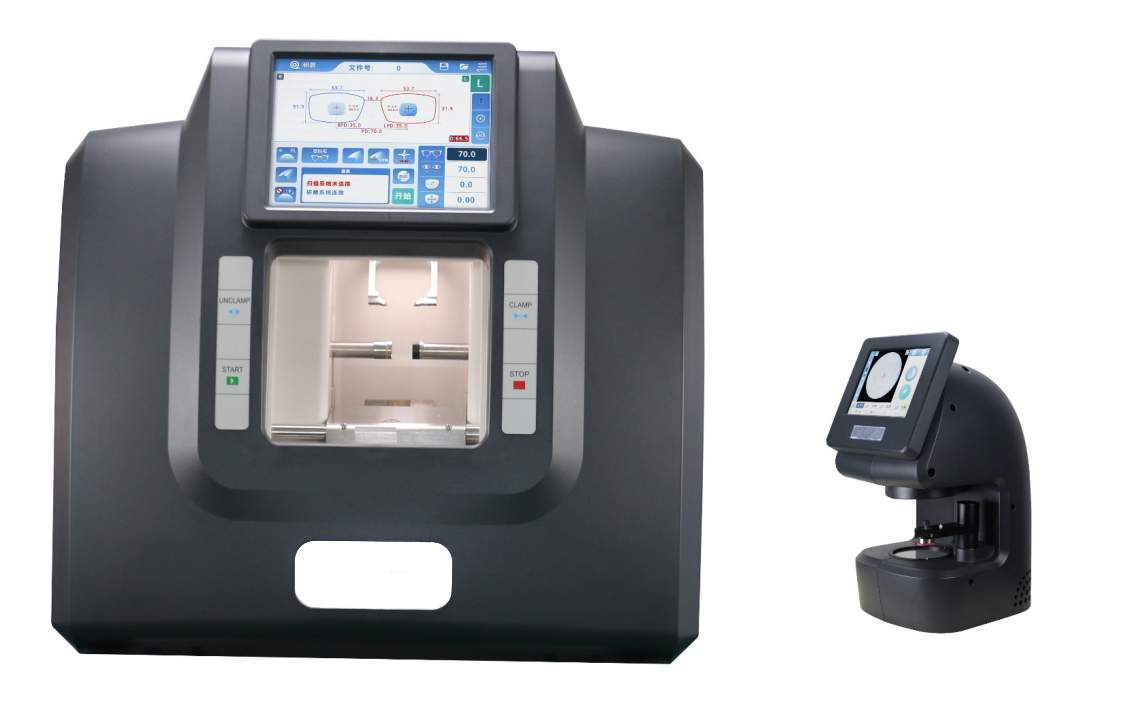

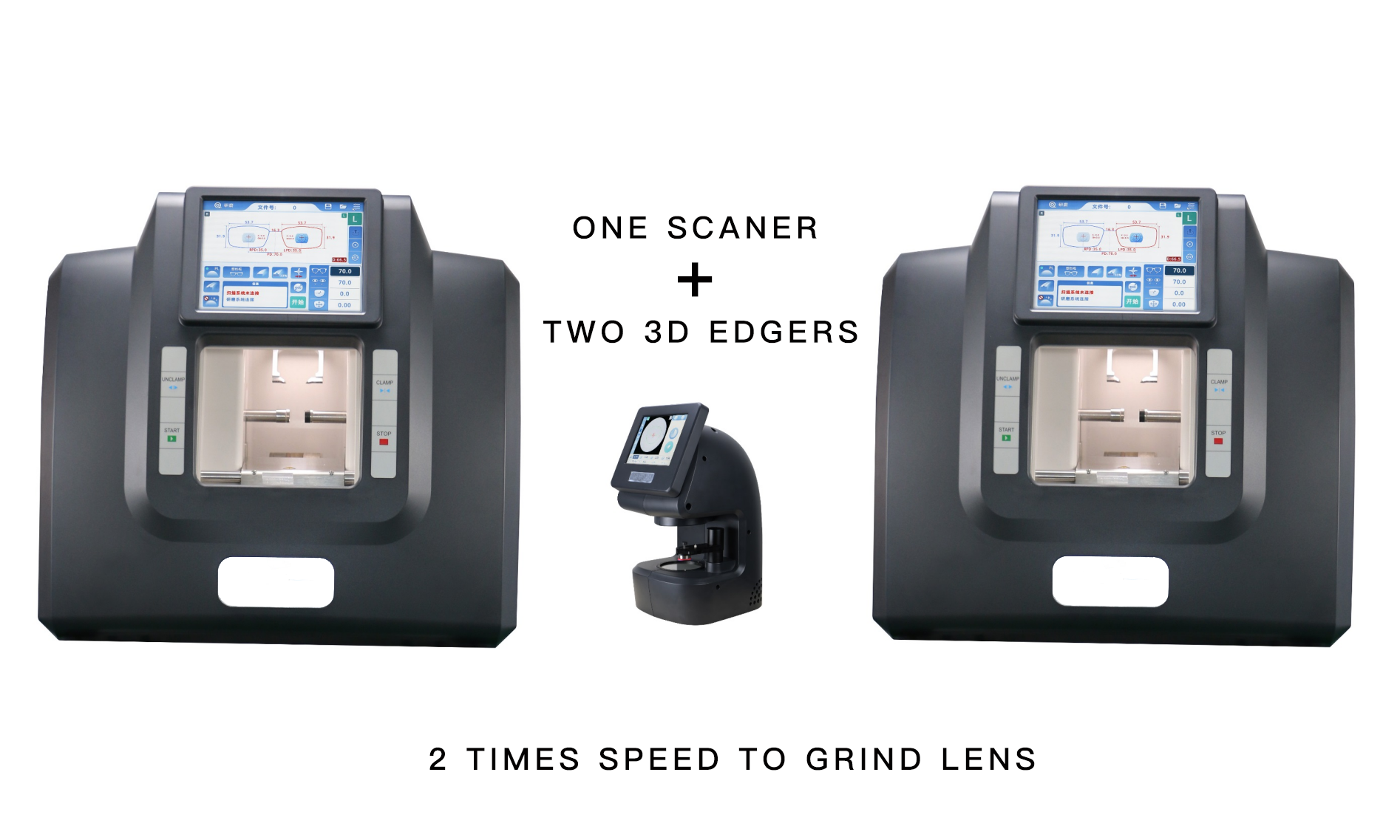

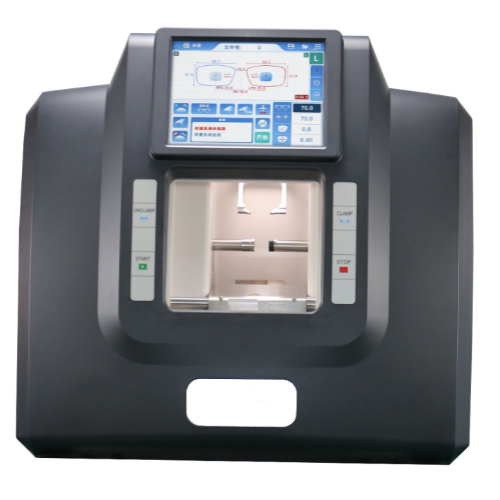

3D Patternless edger PLE6800+PLE680

3D Patternless edger PLE6800+PLE680

Main technical parameters:

1.The host has graphics editing and scaling functions

2.Maximum number of valid stored images: 1000

3.Maximum cutting diameter: 80mm

4.Minimum machining size of sharp edge: 26mm

5.Minimum machining size for flat edges: 25mm

6.Maximum frame to center distance: 100mm

7.Grinding wheel diameter: 100mm * 3

8.Display screen: 10.4-inch high-definition touch screen

9.Input voltage: AC220V 50HZ, AC110V 60HZ

10.Output voltage: DC5V 4.6A/DC24V 4.6A

11.Power: 1KW

12.Sharp edge position: infinitely adjustable (20% -80%)

Main features:

1.Large ultra clear touch screen with high cost-effectiveness;

2.The split module is designed with self deployment, making maintenance convenient and simple;

3.Ultra high grinding efficiency, strong work ability, and perfect shaft running phenomenon.

PLE680  photo scanner

Main technical parameters:

1.Adopting a dual telecentric optical imaging system

2.Display screen: 8-inch high-definition true color LCD touch screen

3.Scan time: less than 3S

4.Scanning accuracy: 0.1mm

5.Power supply: AC100-240V 50/60HZ

6.Motor: DC12V

7.Main features: low failure rate, simple and easy to operate;

8.Precision scanning, precise grinding, and high-end lens accessories;

9.Template scanning (frameless, half frame), frame scanning (full frame)
