3D patternless edger ALE-1800

3D patternless edger ALE-1800 + GM

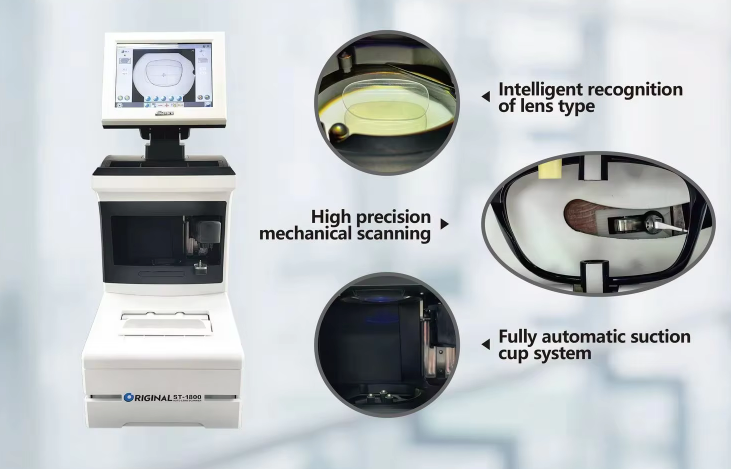

Scanner Features:
Built-in mechanical scanner, enabling single-sided frame scanning,double-sided frame scanning, and Pattern scanning;
Built-in optical scanner, automatically identifying axis position, graphic zooming, and graphic reshaping;
Built-in optical blocker, automatically grasping and positioning suction cups, manual centering, three-point automatic centering recognition;
Automatic memory storage of scanned data, power-off save Functions;
RS232 connection (one for two), WiFi connection for networking.


Specifications

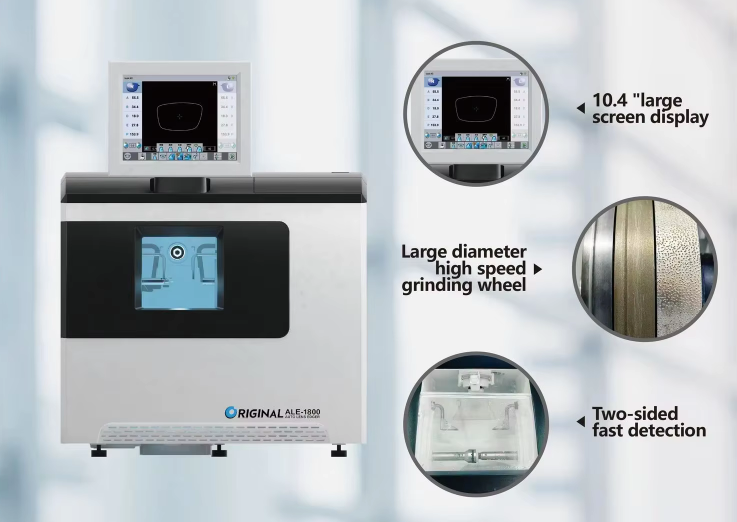

Edger
Screen size		10.4-inch
large grinding wheel		Φ155mm
Lens material		regular resin lens, high-index lens,hard lens, PC lens
Connections		RS232 and WiFi connections with the ST-1800 scanner.
Dimension:		575x488x746mm
Weight		75kg
Frame change Functions		mini bevel Functions, adjustable bevel height;Bevel polishing, flat edge polishing, customizable bevel position;
Scanner
Screen size		10.4-inch
Dimension		304x525x746mm
Weight		30kg
