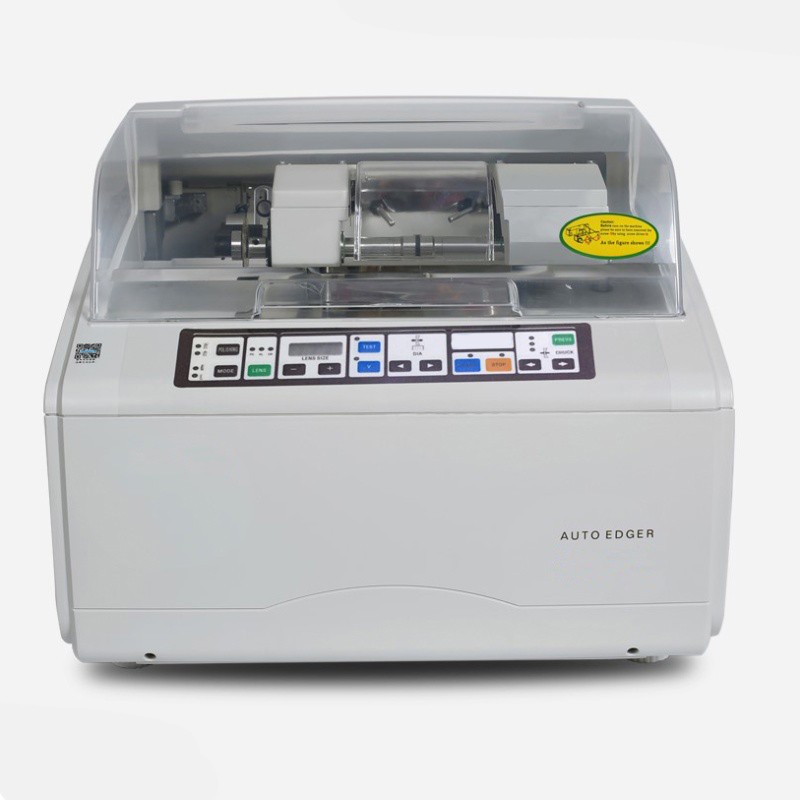

Auto lens edger NH520

Auto lens edger NH520

price with edger main machine, pump and tank,

Equipped with specific materials, the NH-520 auto edger inherits the design style of NH series auto edger,easy to operateand
able to process lens size accurately and stably.

Beveling polishing function;
Pressurizing automatically;
PC auto edger;
The 3rd generation mainboard;
Double Bevel model.

Specifications

The size of diamond wheel	Pc wheel 100×15.6 glass wheel 100×16
	V groove wheel 100 x23 polishing wheel 100×11
Available lens range	22mm~100mm
The processing type	Pointy edges, plat band, bevel polishing
The lens material	CR, glass, pc
Size	530lx500wx400h
Weight	49kg
Voltage	Voltage 220v ±10%frequency 50hz
Power	500w
