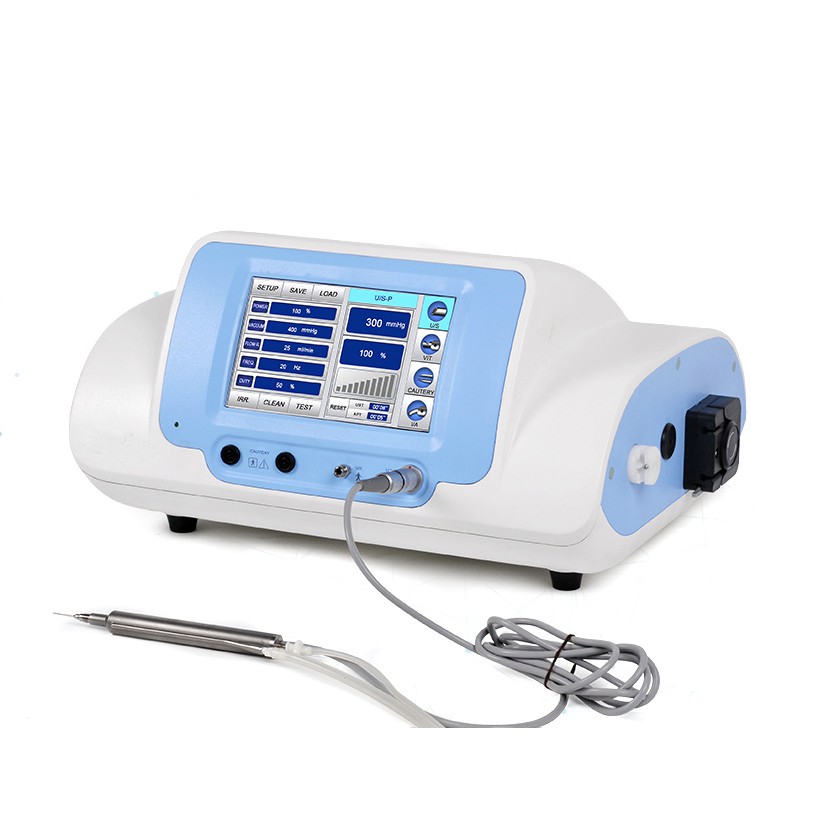

Phaco Emulsification M480A

Phaco Emulsification  M480A

Features:

1. All parts of the system are fully controlled and monitored by Microprocessor Technology;

2. Smoothly and efficiently controlling the emulsifier process with digital frequency tracing technology;

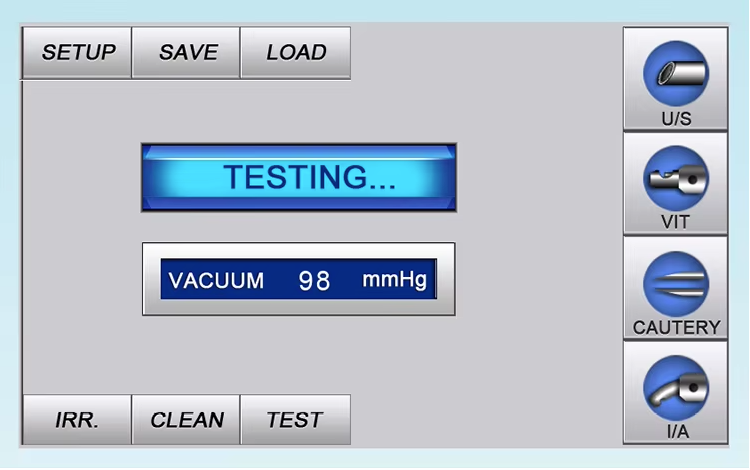

3. Easy operation and user-friendly interface with large TFT touch screen and functional menu;

4. Up to 10 sets of parameters preset meet different requirements and simplify the surgery operation;

5. Auto test checks tubing and hand piece problems (e.g.: block or leakage)

6. The peristaltic pumps gives complete control of aspiration flow rate as well as freedom from anterior chamber shallowing. This way can give stronger suction when working in I/A

7. Built-in Vitrectomy and Cautery

8. Intelligent Voice Reminder

Specifications:

Ultrasonic Emulsification
Frequency	40kHz
Functional mode	Continuance, Pulse, Linear, Burst
Continuance	Emulsifying power Range: 0 ~ 100
Pulse	Frequency Range 1 ~ 99Hz
Linear	Emulsifying power linearly controlled by the footswitch,  varies between 0 ~ 100%
Burst-Stopping Time	1.5 ~ 0s
Burst-Working Time	5 ~ 100ms
Maximum Vacuum	500 mmHg
Maximum Flux Rate	40 ml/min
40 ml/min
Flux Rate	0 ~40 ml/min
Reflux Rate	20 ml/min
Max Vacuum	0~500 mmHg
VIT (Vitrectomy)
Cutting Power Source	Air Pump
Reflux Rate	20 ~ 600/min, step 10/min
Max Vacuum	500 mmHg
Cautery
Maximum Power	10 W ± 20 % (200Ω)
Type	Bipolar
Power preset between	~ 100%
