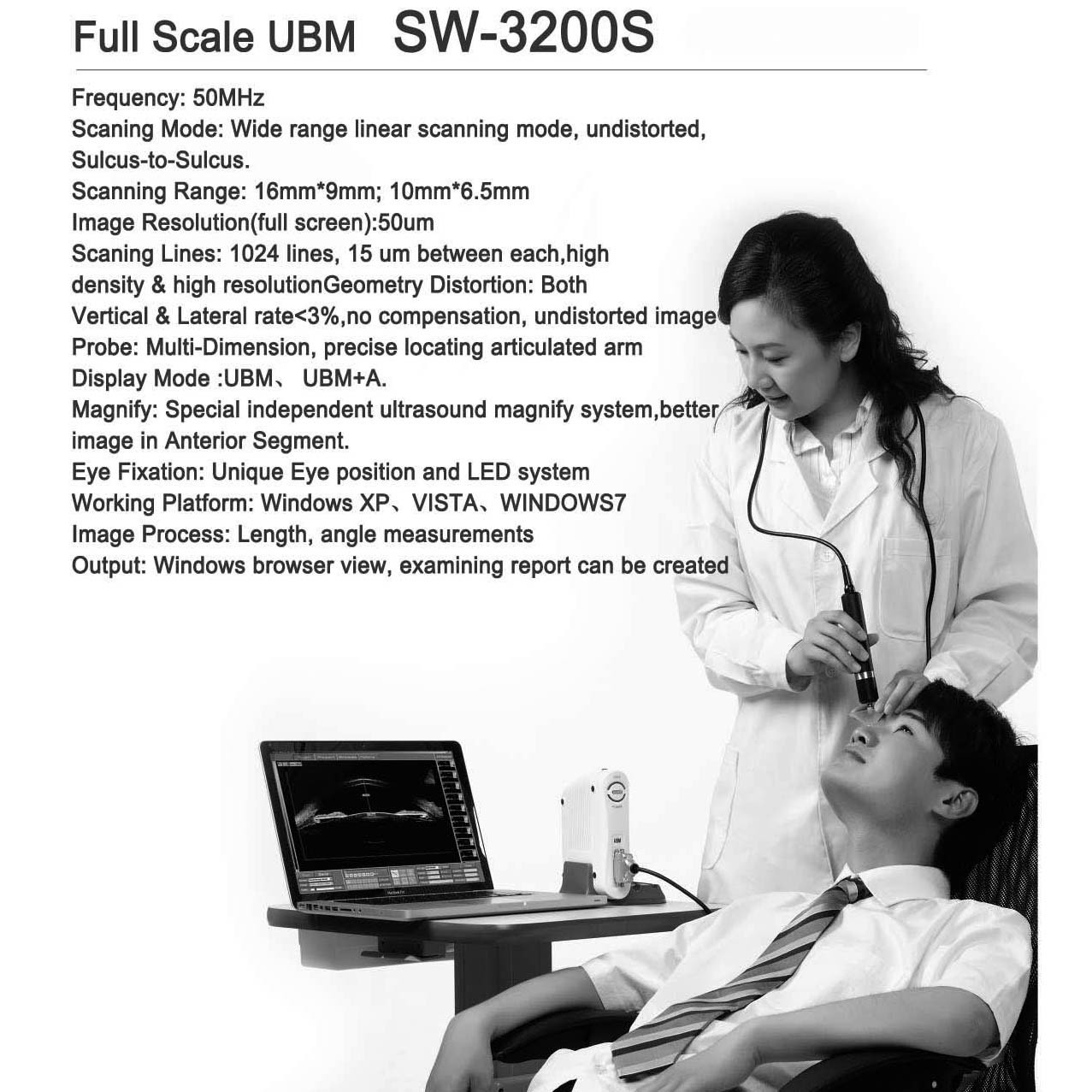

Ultrasound Bio-Microscope(UBM) SW3200S

Frequency

50/35 MHz

Scanning Mode

Wide Range Linear Scanning Mode,Undistorted,Sulcus-to-Sulcus.

Scanning Range

16mm*9mm;10 mm *6.5mm

Vertical precision

≤40μm; Lateral precision: ≤40μm

Scanning Lines

1024 Lines, 15 μm between each lines.

Geometry location precision

Vertical≤3%,Lateral≤3%;No data interpolation,None distortion Imaging

Display mode

UBM,UBM+A

System performance

it have a special independent 50μm ultrasonic amplification system make the anterior segment image clearer.
