YAG LASER LS100A-1064NM

YAG LASER LS100A-1064NM

Introduction

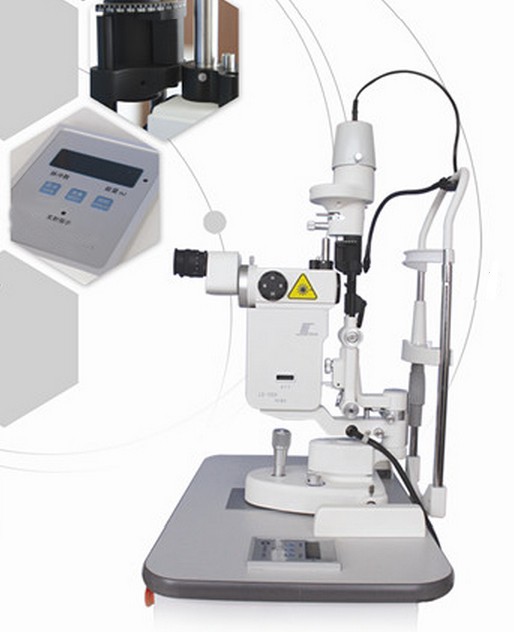

Nd:YAG laser ophthalmic therapy apparatus of LS-100 series is a non-contact microsurgery instrument of high accuracy. It ensures surgery veracity by making YAG laser, aimed laser and slit-lamp microscope strictly coaxial and confocal.

    It applies a saturated-absorption type of dye film to laser Q-switch, which compresses the energy of the YAG laser into narrow pulses to increase pick power until it “explodes” in target tissues. Ionization generated in this way quickly dissociates eye tissues and thus complicated ophthalmic microsurgery can be performed without cutting into the eyeball.



Performance Parameter

1. YAG laser parameters

a）wavelength            1064nm

   b)  mode                multi-mode

c) operating mode          Q-switch

d) pulse width             6ns

e) pulse energy            0~40mj

g) multi-pulse operation     1~4 pulses(optional)

h) pulse energy output instability      ≤±10%

i) focus aperture angle      16°

j) focus beam diameter      ≤30μm；

k) absorption-type weakening film transmittance(%)  100、 70、 50、35、25、12、6、0；

2. Aimed Laser

a) wavelength      632～680nm

b) power          Pc≤1mW。
