3D patternless edger EC3200 +TL800/CT700
EC3200 3D patternless edger +LT800 frame tracerParameters:EC-3200Processing syst
Product Details

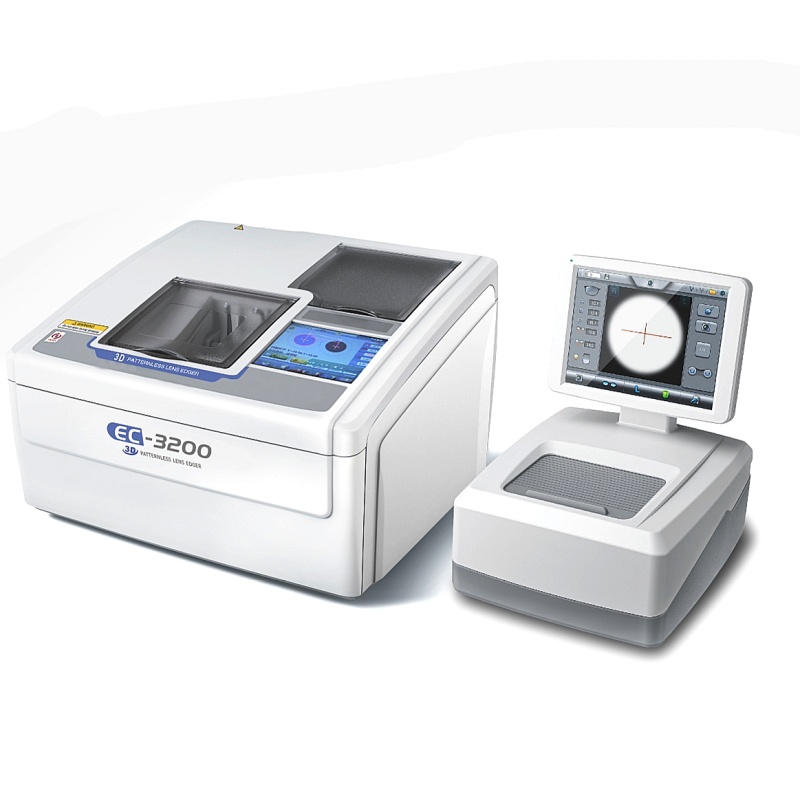

EC3200 3D patternless edger +LT800 frame tracer
Parameters:
|
EC-3200 |
||
|
Processing system |
||
|
Beveling,flat edging, grooving, polishing andchamfering |
||
|
Auto mode and guide mode |
||
|
Processing lens |
plastic, polycarbonate, glass(optional) |
|
|
Processing pressure |
approx.4.5kg (fixed) |
|
|
Wheels |
||
|
Roughing wheel for glass lens (optional) |
100mm in diameter, 17mm in width |
|
|
Roughing wheel for plastic lens |
100mm in diameter, 2 3mm in width (with glass), 17mm in width(with glass) |
|
|
Finishing wheel |
100mm in diameter, 23mm in width (with glass), 23mm in width (with glass) |
|
|
Polishing wheel (for flat edge) |
100mm in diameter, 23mm in width (with glass), 12mm in wicth(with glass) |
|
|
water supply system |
||
|
Pump circulation |
100~230V |
|
|
Processing accuracy |
||
|
Size accuracy |
+/-0.05mm |
|
|
Axis angle |
+/-1° |
|
|
whole system |
||
|
Display |
5.6"LCD/TFT |
|
|
Dimensions (WxDxH) |
520x485x330mm |
|
|
weight |
~45Kg (only main body) |
|
|
Power supply |
110/220v 5O/6OHz |
|
|
Power consumption |
1.2KVA(max. during processing) |
|
|
LT-800 |
CT-700 |
|
|
Measurement time |
<20S |
<3S |
|
Measurement accuracy |
<O.1mm |
<0.1mm |

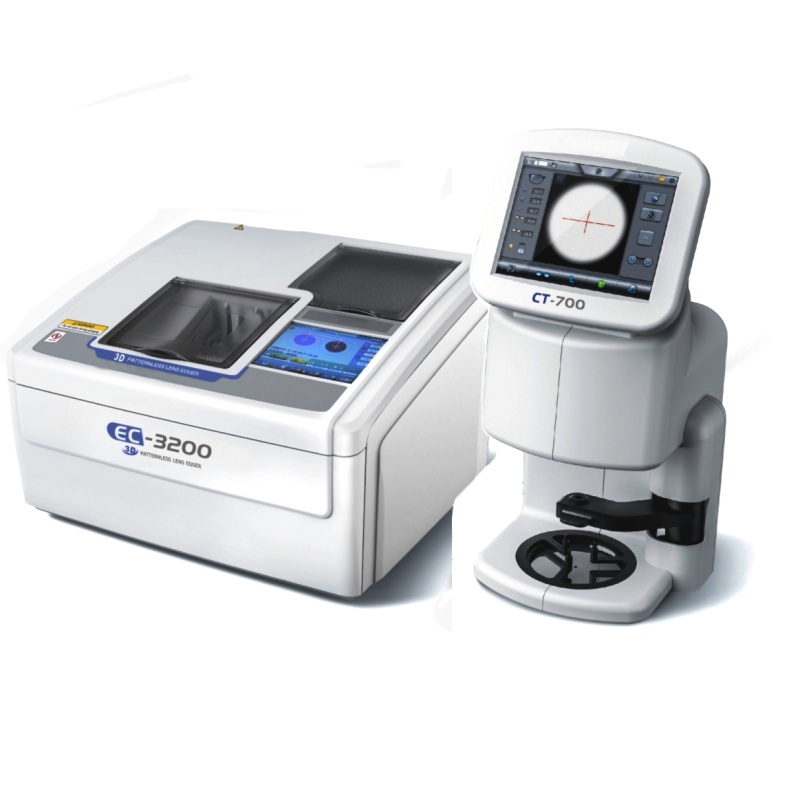

EC3200 3D patternless edger +CT700 frame tracer & Blocker
