Patternless edger ALE1200

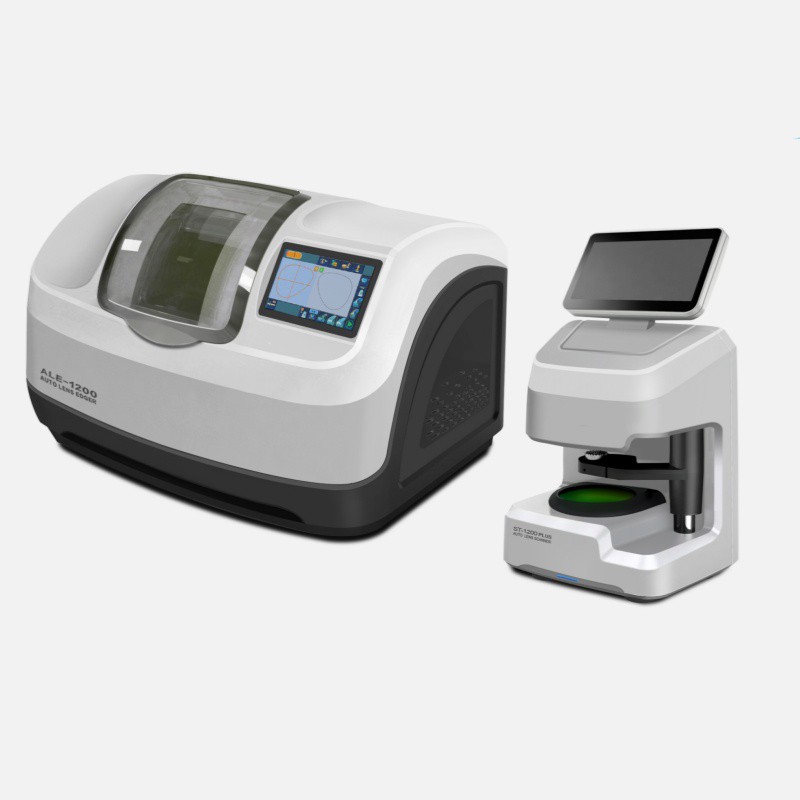

Patternless edger ALE1200 +ST1200 plus

Full functionality of grooving and safety bevel
Reliable and stable performance of optical scanner
Newly optimized software settings for easier maintenance
Optical Scanner
Optical scanner and centering instrument with highprecision, no parallax, high speed, and high reliability
Equipped with a rotary suction cup arm, easyto operate;
The flip screen is convenient for operators to usefrom different angles.

ALE-1200:Basic Model

Specifications
Patternless Lens Edger
Maximum Lens Processing Diameter	80mm
Dimension	705 x465x442mm
Optical Scanner
Dimension	246x225x452mm
Touch Screen	7 Inch capacitive screen
Storage	500 Pairs
Screen Rotary Angle	0~130°
Quantity of connectable hosts	2 set

ST-1200PLUS

Performance parameter

Exterior dimension: 246x225x452mm

Measuring range: lens template L <70mm: W<70mm:

Weight: 10Kg

Voltage: the power adapter

Inout: AC100~240V (50/60Hz) :

Output: DC19V/4.7A:
