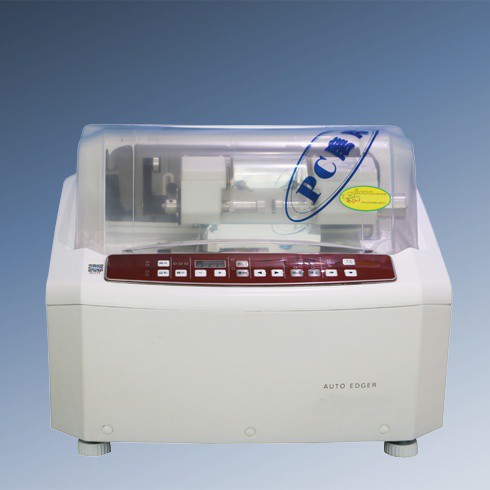

Auto lens edger NH320P
Auto lens edger NH320Pincluding NH-320P edger , and pump , tank,Features:Added t
Product Details
Auto lens edger NH320P
including NH-320P edger , and pump , tank,
|
Features: |
|
Added the automatic emendation system in this new model .it can do automatic emendation when the machine start up assure the size of lens (left and right )is uniform and improve the precision. |
Parameters:
|
The size of Diamond wheel |
CR Wheel: |
100*15.6 |
|
Glass Wheel: |
100*14 |
|
|
Groove Wheel: |
100*19 |
|
|
Polishing wheel: |
100*19 |
|
|
Available lens range: |
22mm-100mm |
|
|
The processing type: |
pointy edges, plat band, bevel polishing |
|
|
The lens material: |
CR, Glass |
|
|
Size: |
530L*500W*400H |
|
|
Weight: |
50kg |
|
|
Voltage: |
220v ±10% |
|
|
Power: |
500w |
|
|
frequently: |
50Hz |
|
| Auto-Clip System | Automatic emendation procedure |
Wheel Configuration |
| Use of third gear pressure on the lens without damage. |
Automatic emendation of the lens size, initial zero Proofreading during the start of grinding, obvious improvement of precision. |
Standard configuration of four wheels(Resin coarse grinding wheel/ Glass coarse grinding wheel, V-flat edge / sharp edges fine grinding wheel, flat resin edge / sharp edges polished wheels. |
