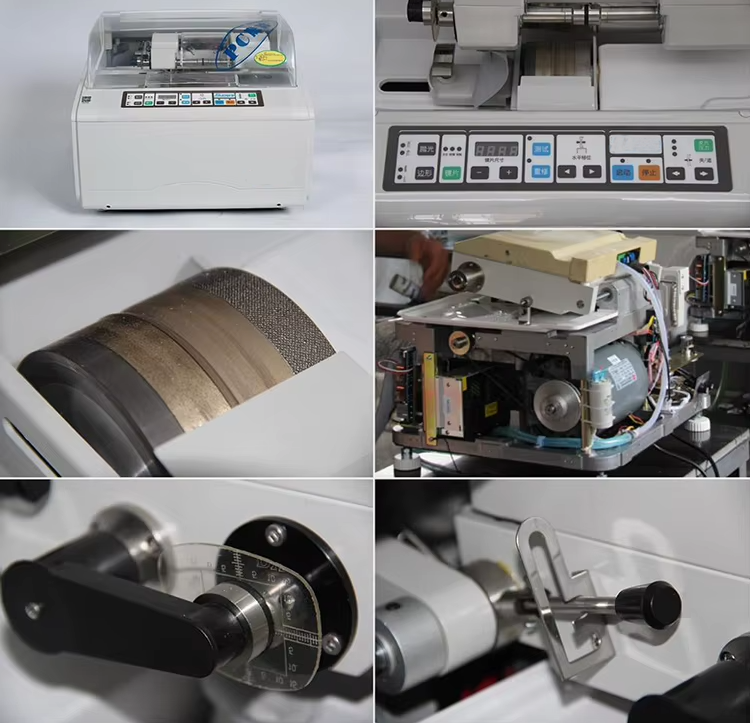

Auto lens edger NH400

Features

Added the automatic emendation system in this new model, it can do automatic emendation when the
machine start up ,assure the size of lens (left and right )is uniform and improve the precision.

Specifications

The size of diamond wheel	Pc wheel 100×15.6 glass wheel 100×16
The size of diamond wheel	V groove wheel 100 x23 polishing wheel 100×11
Available lens range	22mm~100mm
The processing type	Pointy edges, plat band, bevel polishing
The lens material	CR, glass, pc
Size	530lx500wx400h
Weight	49kg
Voltage	Voltage 220v ±10%frequency 50hz
Power	500w
