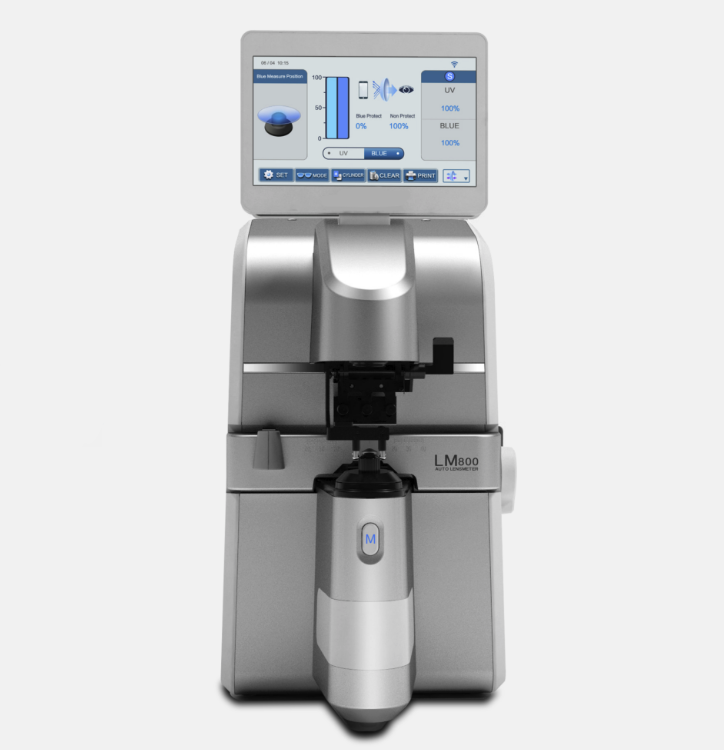

Auto lens meter LM800
LM-800 Auto LensmeterFeatures:1.Measurement of PD, PH and PCL(Progressive Channel Length)2.New capacitive touch panel with high resolution3.The wavelength of UV and green light can be measured simulta···
Introduction
LM-800 Auto Lensmeter
Features: |
1. Measurement of PD, PH and PCL(Progressive Channel Length) 2. New capacitive touch panel with high resolution 3. The wavelength of UV and green light can be measured simultaneously. 4. Blue tooth, RS232 serial port, USB, WIFI. 4 forms of data communication. 5. Finer marking pens and lens holder. Magnetic and stable sliding nosepiece. |
Parameter:
Range of measurement
Sphere:0D~±25D(0.01,0.12,0.25 steps)
Cylinder: 0D~±9.99D(0.01,0.12,0.25 steps)
Axis : 0°~180°(1°step)
Addition: 0D~±9.99D(0.01D,0.12D,0.25D steps)
Prism: 0cm/m~15cm/m(0.01cm/m,0.12cm/m,0.25cm/m steps)
Measurement mode:
Cylinder +, +/-, -
Prism: X-Y, P-B
Contact lens: Soft/hard lens
Measurement mode: Single/progressive/automatic recognition
Specifications
Diameter of lens: Φ12mm~Φ112mm
PD: 40mm~90mm(0.5mm steps)
Measuring speed: 0.1second
Abbe number: 30~60
Display: 7″LCD/TFT
Printer: Thermal printer
Dimension: 180mm×455mm×255mm
Package: 620mm×390mm×390mm
Weight: ~12kg
Power supply: 100~240V 50/60HZ 25VA
Photos
