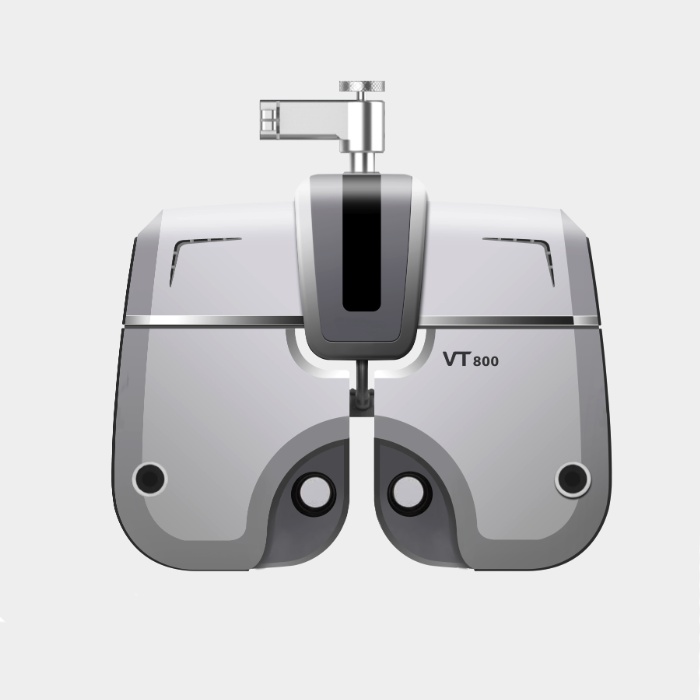

Auto phoropter VT800
Auto phoropter VT800Features:1.The 8-inchscreen , 180 degree rotable of the screen .make it more convenient to communicate with customer2.sigle PD setting, make it easy for progressive lenses.3.one ke···
Introduction
Auto phoropter VT800
Features:
1. The 8-inch screen , 180 degree rotable of the screen . make it more convenient to communicate with customer
2. sigle PD setting, make it easy for progressive lenses.
3. one key help funtion makes the operator more easier to learn the function
4. Multi connection , blue tooth and wifi
Specifications:
Sphere | -29.00~+26.75 D(step:0. 12D/0.25D/0.5D/1D/2D/3D) |
Cylinder | 0.00~8.75D (step:0.25D/0.5D/1D/2D/3D) |
Cylinder axis | 0~180 degree (step : 1/5/15/30/45 degree) |
PD: Far | 48~80mm Near : 45~75mm (step:0.5/1 .0mm) |
Working distance | 35~70cm (step: 5 cm) |
Prism | 0~20 (step 0.1/0.2/0.50/1/2) |
Jackson cross cylinder | Jackson cross cylinder 0.25D Jackson cross clinder 0.50D |
Dual cross cylinder | (separation prism) |
Ophthalmoscope | +1.5D,+2.0D( measuring distance 67cm, 50cm) |
Size and weight | |
Body of main engine: | 353(W) x 114(D) x 353)mm, 3.5kg |
Keyboard | 220(W)x 230(D)x 210(H)mm , 1.5kg |
Junction box | 266(W) x 72(D) x 240(H)mm, 1.3kg |
Voltage | AC 100~240V, 50/60Hz |
Power | 90VA |
Auxiliary lens | |
Pinhole lens | 1mm |
Maddox | Right eye (horizon), left eye (vertical) Red and green lens Right eye(red), left eye (green) |
Polaroid | Right eye(135 degree, 45 degree), left eye (45degree, 135 degree ) |
Separation prism | Right eye(6, BU), Left eye(10, Bl) |
Solid suprachiasmatic cylinder | Jackson cross cylinder +-0.50D |
Axis fixation | 90 Degree |
Visual degree | 32 Degree |
Photos
