Auto lens meter LP6100

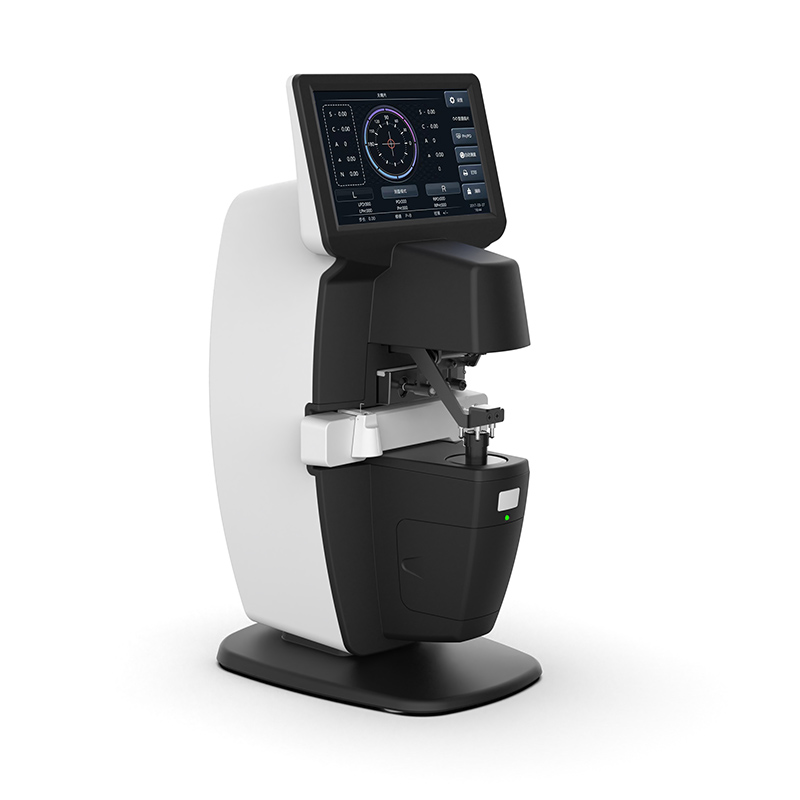

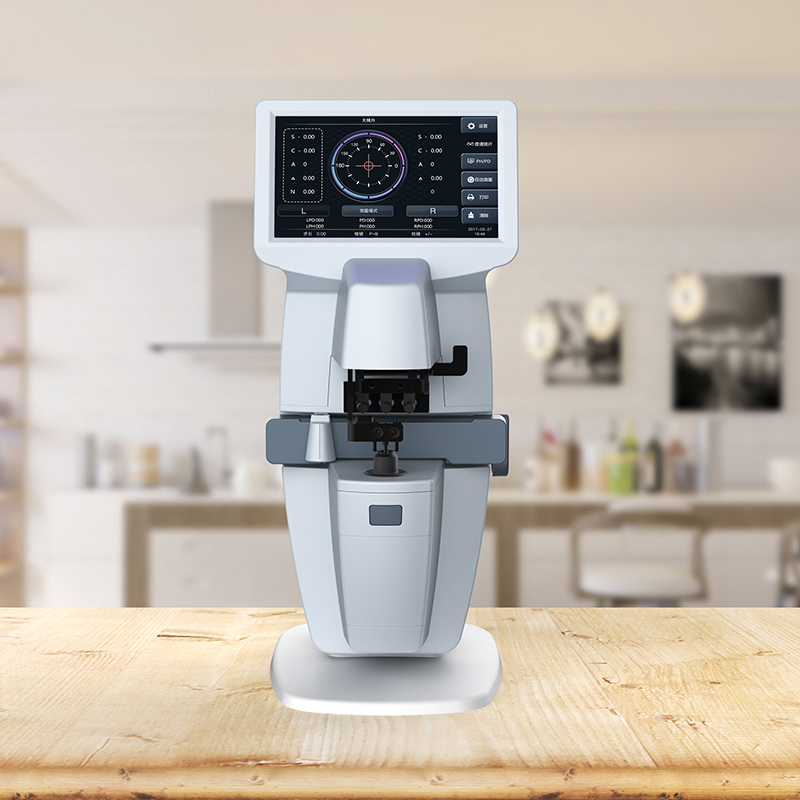

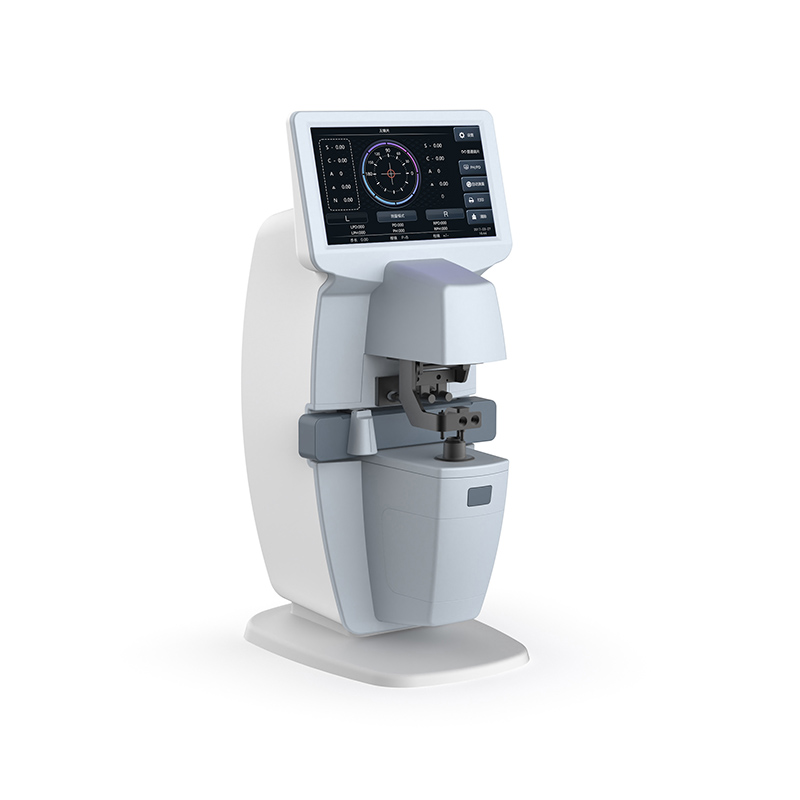

Auto lens meter LP6100 white color

Black color

LP-6100 Main Technology Parameters

1、Spherical power (spectacle lens): － 25 m-1 ～＋ 25 m-1

2、 Cylindrical power: － 9.99 m-1 ～＋ 9.99 m-1

3、 Progressive ADD power: － 9.99 m-1 ～＋ 9.99 m-1

4、Spherical power (contact lens): － 20 m-1 ～＋ 20 m-1

5、Vertex power step measurement: 0.01 m-1，0.06 m-1，0.12 m-1，

0.25 m-1 selectable

6 、Cylindrical lens astigmatism axis angle measurement scope:

0°～ 180° , step 1°

7、 Prism base angle measurement scope: 0°～ 360° step 1°

8、 Prism degree measurement scope: Horizontal 0 ～ 20 △ , step 0.01 △ Vertical 0 ～ 20 △ , step 0.01 △

9、 Measurable lens diameter: φ 10mm ～φ 100mm

10、 Measurable lens center thickness: ≤ 20mm

11、 Lens PD measurement scope: 40mm ～ 82mm , step 0.25mm

( applicable only some models)

12、 Lens PH difference △ PH measurement scope: 0mm ～ 50mm ,

step 0.25mm( applicable only some models)

13、 Measurable lens frame leg length: 0mm ～ 160mm

14、 Measurable anti-uv transmittance rate : 0~100% , step 1%

15、 Main engine power supply: direct current12V，48W

16、 Power adapter : Input AC 100V-240V，50Hz-60Hz ; Output DC 12V，48W

17、 Body size: 413mm*170mm*217mm

18、 Weight :3.8 kg

19、 Screen: 800x480 color screen, full screen touchable

20、 Printer: thermal printing, printing paper width 57mm( applicable only some models)

21、 External connector: power connector , USB connector
