Auto phoropter ZD6000 + T3000/SC800

Auto phoropter ZD6000 + T3000 chart projecor. / SC800 LCD visual chart

T3000 chart projector

SC800 visual chart

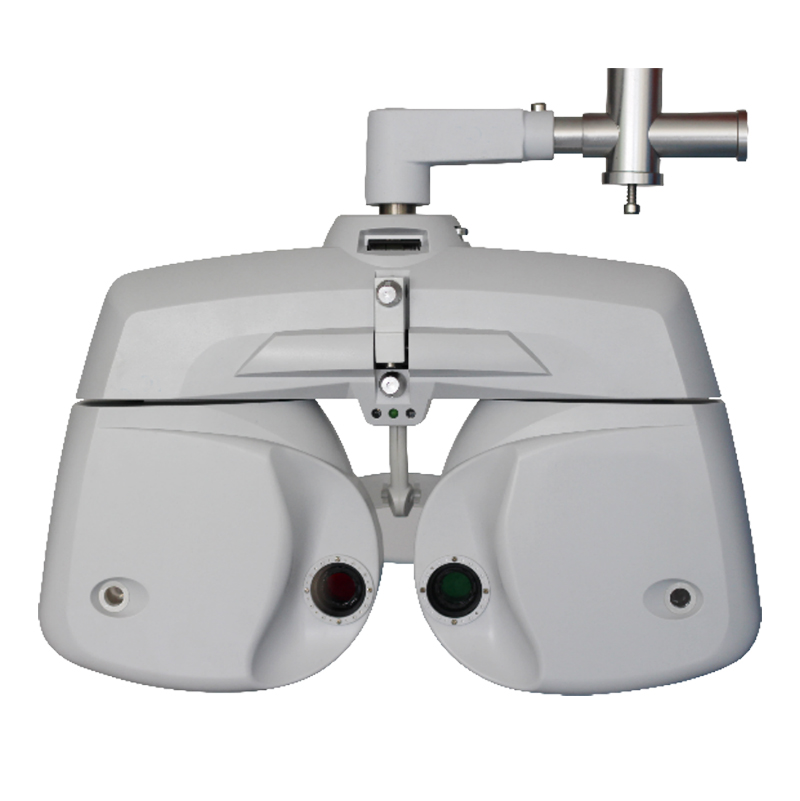

Auto phoropter ZD6000

Inspection scope:

1.Ball mirror: 0.00~-19.00D (0.25/0.50/1/3D step size L0.00-+16.75D (0.25/0.50/1/3D step size)

2. Column mirror: 0.00 ± 8.75D (on 0.25/0.50/1/3D steps)

3. Column mirror axis: 0-180 ° (10/5 ° step size)

4.Prism: 0-20A [0.1/0.5 △ step size]

5.Prism base direction: upward, downward, inward, outward

6.Proximity vision examination: The optical axis of both eyes will automatically intersect 30cm/40cm in front of the eyes

7. Double eye balance test: prism separation method, red green balance, polarization balance

8. Cross cylindrical mirror:+0.25D

9.Pupil distance PD: 50-80mm (0 5/1mm step size)

10. Detector compensation film:+2.00D/+1.50D built-in

11.Mirror eye distance adjustment: 12-20mm every 2mm steps per yearField of view: 35 °

12. Product specifications:

Host size: 350 (W) x300 (H) x80 (D) mm

Accessories: Bluetooth printer, tablet

Power supply: DC 100V-220V or 220V-240V 50/60Hz

Power: 60W

Outer box size: 525 * 410 * 280 (mm)

Gross weight: 7kg

T3000 chart projector

Technical specifications:

1.Remote control distance: within 5 meters

2.Visual distance between test areas: at least 0.5 °Brightness: 80~320cd/m2

3. Resolution: not less than 1.456lp/mm

4. Working distance: 5m, adjustable range 1-6.5m, step size: 0.1m

5. Screen saver time: 0-120 minutes (adjustable according to actual needs)

6. Transportation environmental conditions:

7. Relative temperature: -20 ° C -+45 ° C

8. Relative humidity: 10% -90% (without condensation)

9. Atmospheric pressure: 500kPa-1060kPa

10. No corrosive gases and good ventilation

11. Normal working conditions:

      Temperature environment range: 5 ° C-40 ° C

       Relative humidity range: ≤ 80%

       Remote control battery: 2 No. 7 DC1.5V

        Power supply: AC100-240V 50Hz/60Hz

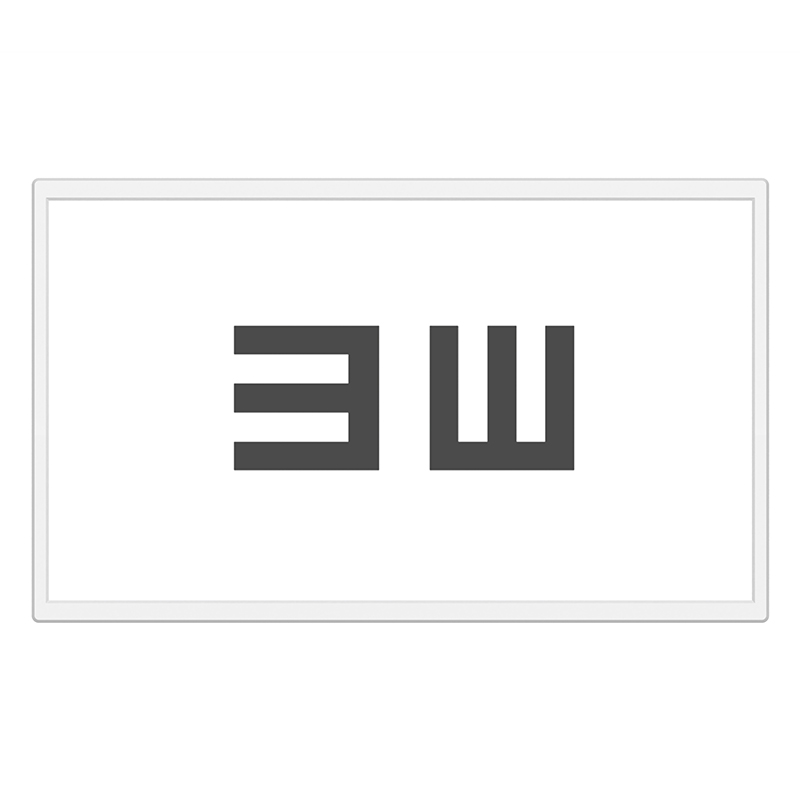

SC800 lcd chart --white or black color

Product characteristics:

•. Appearance of 21.5-inch screen, frame with narrow edge drawing process, thin and beautiful.

• 178° ultra-wide visual Angle PLS LCD panel, 30% increase in transmittance, abandon the

• "frost-screen" visual experience.

• Pixel matching visual standard is matched to the full pixel unit, and half pixel burrs are completely eliminated.

  Extremely short response time brings smooth control experience.

Panel Type:21.5-inch HD PLS Panel

Resolution: 1920 x 1080

The maximum: brightness is 320 cd/m2

Working distance: !.Om~6.Sm adjustable (step distance 0. lm)

Installation Method: Table type /Wall-mounted

Basic visual markers: C /E/letters/numbers/Children's visual markers /ETDRS visual markers Functional

 visual standard red green/astigmatism/binocular balance/fusion, a total of 15 kinds

Dimensions Weight (Wall mounted): Main Machine 575mm(W) x 135mm(H) x 400mm(D) / 2.2kg

Remote control:ssmm(W) x 186mm(H) x 17.2mm(D) / 80g

Power parameters: input 100V-240V, 50Hz-60Hz; The output DC 12V, 48W
