Auto ref/keratometer RMK800

Auto ref/keratometer RMK800- Hartmann wavefront sensing technology- Human eye wa

Category:

Product Details

– Hartmann wavefront sensing technology

– Human eye wavefront aberration map display

– 3D Wide Range of Fully Automatic Measurement

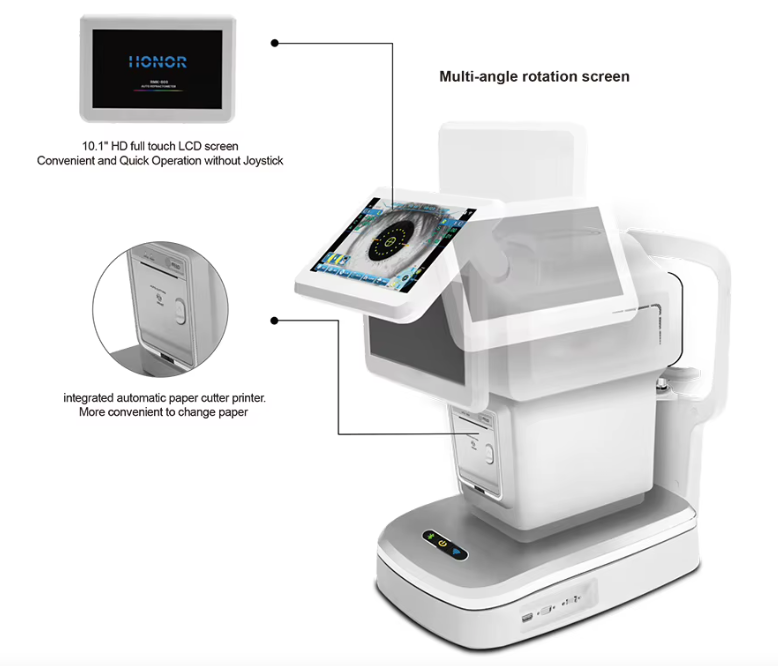

– 10.1" HD Touch Screen

– One-touch Operation

3D Tracing Measurement.

Free switching between binocular automatic

mode, monocular automatic mode and manual

mode can satisfy your various measurement

requirements.

Specification

Range of measurement	Sphere	-20~+20D(VD=12) 0.12D/25D step
	Cylinder	-10~+10D 0.12D/25D step
	Axis	0°~180° (1°step)
	PD	10-85mm,1mm step
	VD	0mm,12mm,13.75mm
	Min Pupil Size	2.0mm
Keratometry	Corneal apex distance	0.0, 12.0, 13.75, 15.0
	Spherical mirror degree	-20.00D ~ + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units)
	Axis position	10 ~ 180 ° (1 ° unit)
	Cornea diopter	33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375)
	Cornea curvature radius	5.0 ~ 10.0mm (0.01mm accuracy)
	Measure light energy	<30uw (ensure measurement safety)
