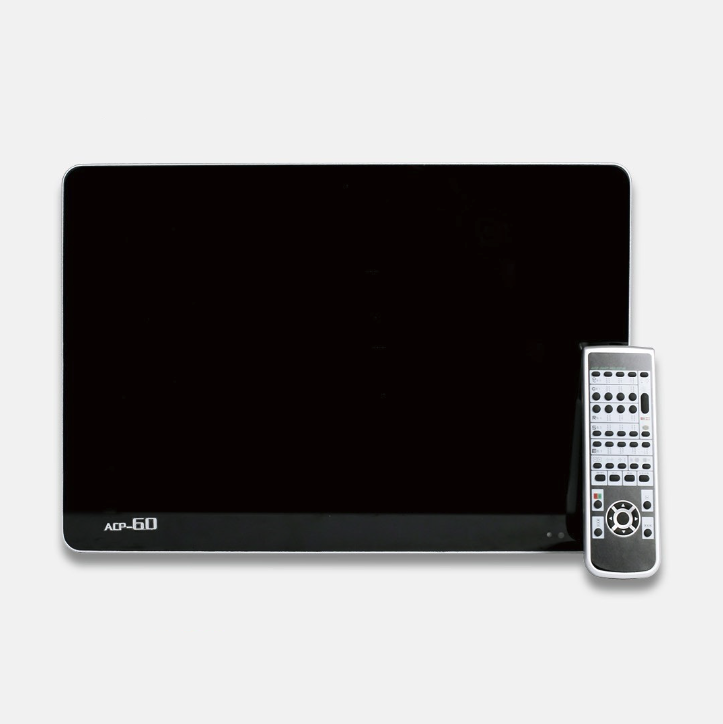

ACP-60 Chart Monitor
Features:
1. Over Forty working distance (2, 2.1, 2.2, 2.3…..5.8, 5.9, 6 meters) (8, 8.5, 9, 9.5 ..18, 18.5, 19, 19.5, 20 foot) are available to suit the layout of the clinic.
2. The LCD-100 chart size automatically calibrates to the chosen working distance.
3. Selectable Working Distance: 2 to 6 meters (In the Mirror mode:5-6 meters).
4. Can be hung on the wall by a bracket.
5. Can stand on ground by a support.
6. Can be set on the table.
Parameters:
|
LCD |
Type |
19-inch SXGA liquid crystal display with long lasting back light |
|
Pixel pitch |
0.285mm |
|
|
Resolution |
1280×1024 pixels |
|
|
Chart window size |
390(W) ×240(H) mm |
|
|
Brightness |
230±30 cd/ M2 Max: 300cd/m2 |
|
|
Max contrast ratio |
800:1 |
|
|
Input signal |
RGB |
|
|
Signal joint |
15 pin D pattern plug |
|
|
Energy consumption |
35W |
|
|
Compatibility |
PC/MAC |
|
|
Charts |
VA chart type |
Landolt C,Tumbling E,Letters,Numbers,Children |
|
Isolation |
Sing letter,Horizontal/Vertical line |
|
|
Range |
Decimal : (0.05) – (2.0) |
|
|
20f : (400) – (10) |
||
|
6m : (400) – (10) |
||
|
Special chart type |
Red-green, Dots, Astigmatism clock dial, ETDRS, Phoria, Phoria with fixation, Coincidences, Schober, Worth etc . (Depends on the chart type.) |
|
|
Distance of installation |
2-6m(10cm of unit) 8-20f(0.5f of unit) |
|
|
Memory card |
CF card/Built-in card slot |
|
|
Power supply |
AC 100V-230V |
|
|
50 / 60Hz |
||
|
Power consumption |
100VA |
|
|
Dimensions and Weight |
500 (W) ×555 (H) ×38(D) mm / 5kg |
|
|
19.7 (W) ×21.9 (H) ×1.5 (D) /16.5 lbs |
