Hand-held vision screener V100

Hand-held vision screener V100

Hand-held vision screener V100The vision screener V100 is a portable diagnostic

Category:

Product Details

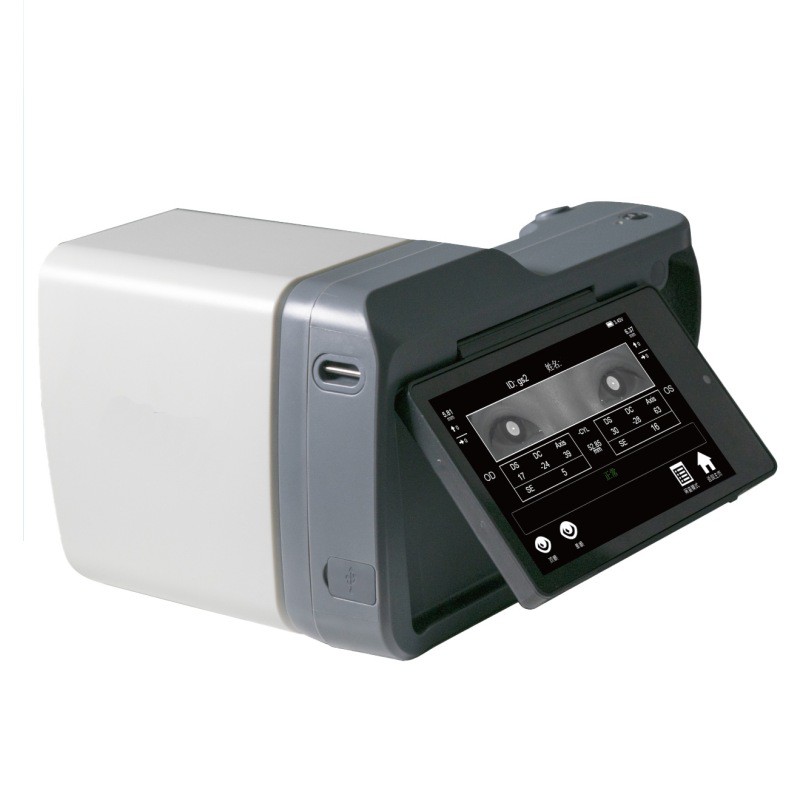

Hand-held vision screener V100

The vision screener V100 is a portable diagnostic device designed for clinicians to quickly detect vision
abnormalities on patients from 6-month old to adults. Cell can screen both eyes at once from a distance of 1
meter. Once the pupils are in focus, the device will start to calculate automatically and deliver results within 1
second. The touch screen allows users to operate conveniently like using a smart phone.

• Myopia (nearsightedness)
• Anisometropia (unequal refractive power)
• Hyperopia (farsightedness)
• Strabismus (eye misalignment)
• Astigmatism (blurred vision)
• Anisocoria (unequal pupil size)

V100 Vision Screen Features:

1 90 degree flipable 4.3” touch screen for easy operation
2. Wider range of diopter measurement from -9.00D to +7.00D;

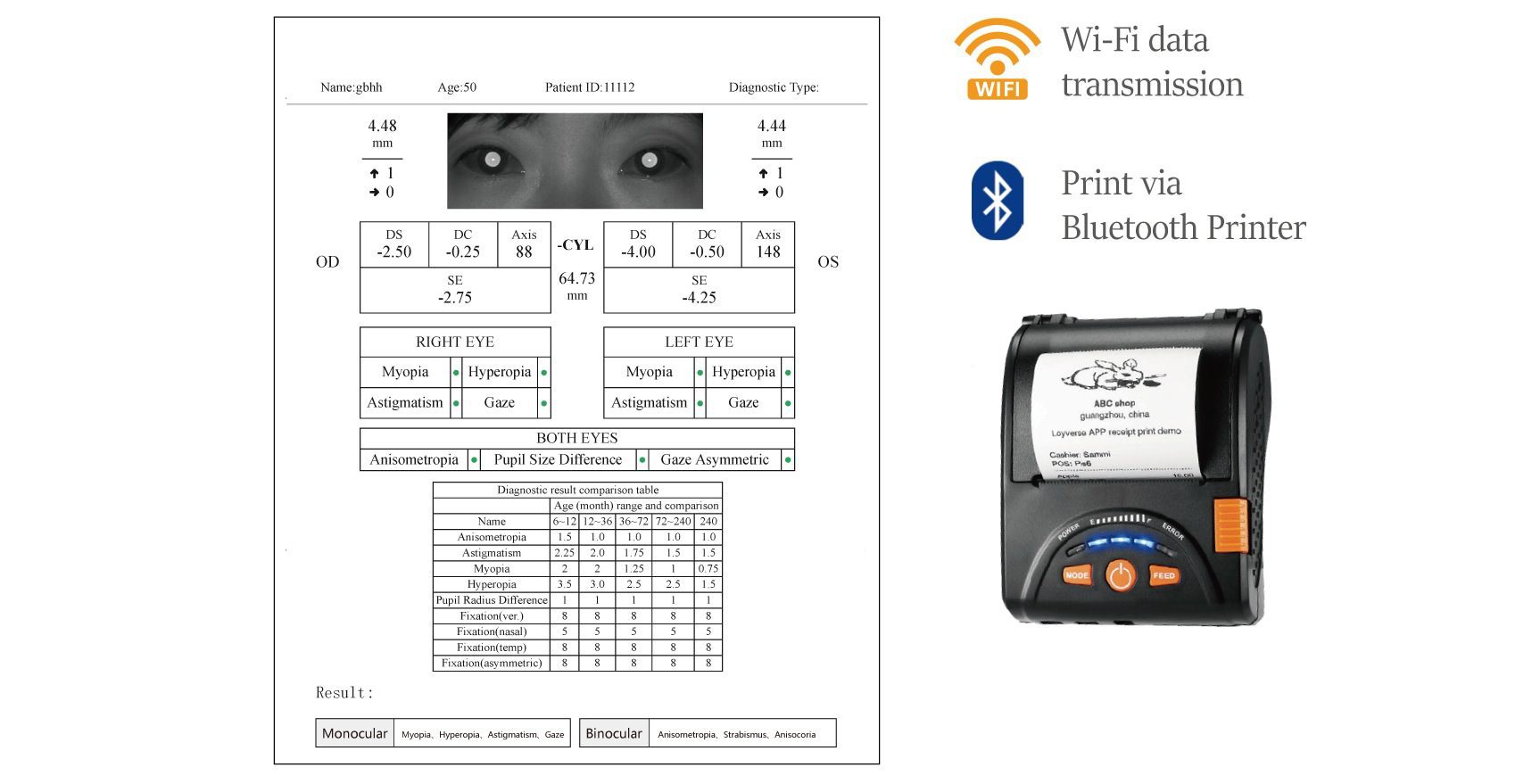

3. support data transfer via wifi and also the exclusive software available for data management
4. Fast in taking pictures and generating the report only in 1 second;
5. Larger built in storage space up to 13G able to save more than 120,000 pcs of data;
6. Voice prompts available to increase test efficiency and allows doctors to find the right distance to do the test very quickly.

Model No.

V100

Minimum Pupil Size

4mm

Automated Distance Sensing

100 cm±5cm

Measuring Mode

Binocular/Monocular

SPH

Range:-9D~+7D
Resolution:0.25D/0.01D
Accuracy:±0.5D

CYL

Accuracy:±0.5D
Range:0D~3D
Resolution:0.25D/0.01D

Axis

Range:0~180°
Resolution:1°
Accuracy:±5

Measuring Range

SPH -9.00D~+7.00D in 0.25D/0.01D increments;
CYL -3.00D~+3.00D in 0.25D/0.01D increments

Axis

1~180°

Measuring Time

1 second

Pupil Distance

35~80mm,Accuracy 0.1mm

Gaze Measurement

0-20 Degrees

Pupil Size

4~9mm,Accuracy 0.1mm

Data Transfer

Wifi

Screen

4.3"LCD touch screen

Power

Li-ion battery X2, 3.7V/3400mAh

Charging Port

Micro USB

Power Adaptor

100~240VAC,50/60HZ

Working Time

5 hours

Charging Time

5 hours

Infrared Illumination Spectrum

800nm~880nm

Fixation Target

Audible sound and flashing lights

Targeted Patient

from 6-month infant to adults

Weight

800g
