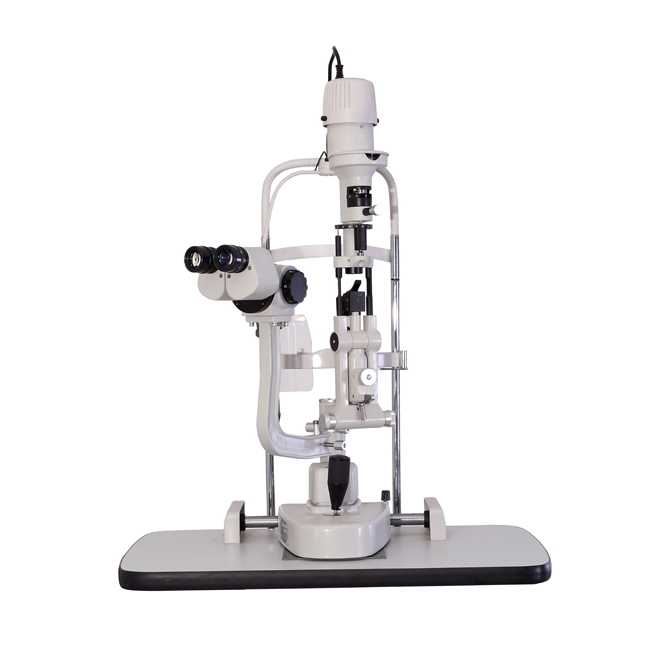

Slit lamp Microscope SLM-2ER-L
Slit lamp Microscope SLM-2ER-LSlit Lamp SLM-2ER-L-Galileo Parallel-High Definition Eyepieces; More Comfortable for Viewing.-High Sensitivity Professional Objective Lens;-Drum Three Magnifications, 10···
Introduction
Slit lamp Microscope SLM-2ER-L
Slit Lamp SLM-2ER-L
-Galileo Parallel
-High Definition Eyepieces; More Comfortable for Viewing.
-High Sensitivity Professional Objective Lens;
-Drum Three Magnifications, 10X, 16X, 25X, More Convenient.
-All Mirrors Use Imported Material. All Mirrors Have Been Carried out Moisture Proof, Mould Proof and Coating Processing for Many Times, Which Prove Its Good Optic Performance in Different Weather Condition.
-German Industrial Bulb, High Brightness without Harsh, Quick Heat Dispersion;
-One Piece Preset Lens and One Diffuse Lens for Free
-International Standard Accessory Interface Which Can Connect Kinds of Laser Adapter and Goldman Tonometer;
-Digital Upgrading Interface ;Can Upgrade to Digital Slit Lamp;
-Teaching Tube Optional
-High Definition Eyepieces, More Comfortable for Viewing. Drum Magnifications;
Technical Specification | |
Model | SLM-2ER-L |
Microscope Type | Galileo Parallel |
Digital System | No |
Magnification Change Way | Drum Three Magnifications |
Eyepiece Magnification | 12.5x |
Total Magnifications | 10x, 16x, 25x |
Diopter Adjustment | -5D ~+5D |
Illumination | Three Steps (5 Steps and Step less Optional) |
Slit Width | 0-14MM Continuous |
Slit Height | 1-14MM Continuous |
Slit Angle | 0°- 180° Adjustable |
Slit Inclination Angle | 5°10°15°20° |
Light Source | High Light Source |
Light Spot Diameter | 0.2mm, 2mm, 3mm, 5mm, 10mm, 14mm |
Filter | Heat Absorption; Grey; Redfree; Cobalt Blue |
Fixation | Red LED |
Electrical | |
Illumination Bulb | German OSRAM Halogen Tungsten Lamp 12V/50W |
Input Voltage | 110V/220V (±10%) |
Input Power | 60VA |
Diffuse Lens | Yes |
Preset Lens | Yes |
Laser Interface | Yes |
Applanation Tonometer Interface | Yes |
Photos
