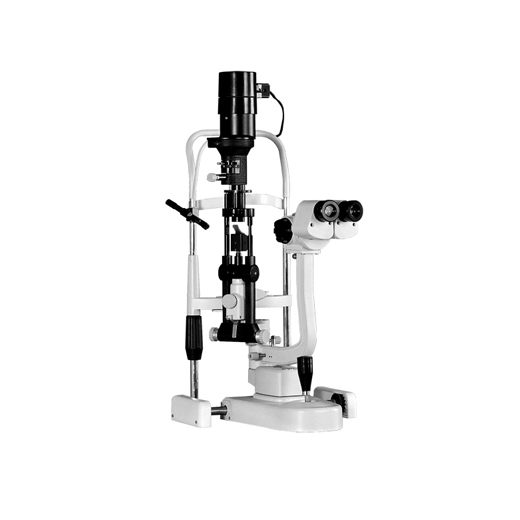

Slit lamp Microscope YZ5F1
Characteristics:·Imported Schott optics from Germany reducesoptical distortion, increases clarity and depth of focus.·All theOptical lenses are moistureproof,mildewproof and anti-reflected treated.····
Introduction
Characteristics:
·Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
·All the Optical lenses are moistureproof,mildewproof and anti-reflected treated.
·Excellent optical performance and long span usage.
·Five-step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification
·All the joints can be connected by accessories with international standards.
Specifications：
Microscope Type | Galilean stereoscopic microscope |
Objective Magnification | Five Steps Drum Magnifications |
Eyepiece | 12.5x |
Magnifications（Field of View) | 6x（φ33mm）、10x（φ22.5mm）、16x（φ14mm）、2 5x（φ8.8mm）、40x（φ5.5mm） |
Pupil Distance | 55mm～75mm |
Diopter Adjustment | －5D～+3D |
Slit Width | 0mm～9mm adjustable（Slit is round when the silt width is 9mm） |
Slit Height | 1mm～8mm adjustable |
Slit Angle | 0°-180°adjustable |
Slit Inclination | 5°、10°、15°、20°,four steps adjustable |
Diameter of Light Spot | φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm |
Filter | Heat Absorption、Grey、Redfree、Cobalt Blue |
Illumination Bulb | 12V/30W Halogen Bulb |
Input Voltage | AC220V±22 V ,AC110V±11 V |
Electrical Safety Standard | Conform to Standard:IEC601-1,Class I,Type B |
Packing Volume | 720mm*495mm*480mm |
Total Weight | 24kg |
Optional Accessories | R Type,T Type Applanation Tonometer、Measuring Eye Piece、Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens、 Teaching Tube |
