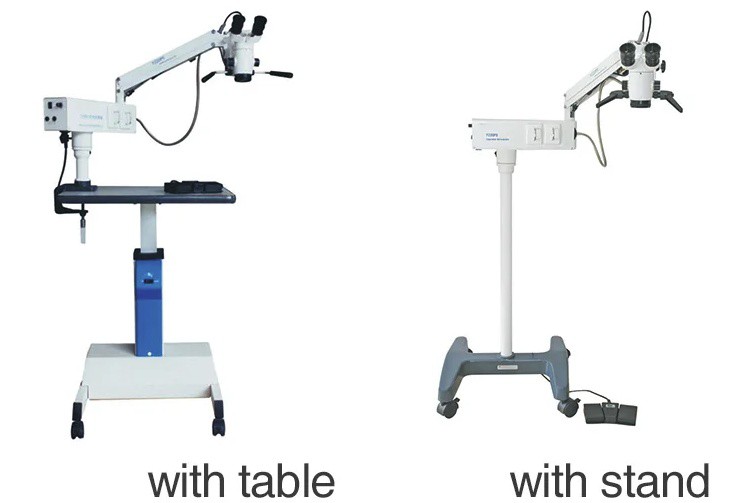

Surgical Microscope YZ20P5

Surgical Microscope YZ20P5

The YZ20P5 China Hot Sale Ophthalmic Operating Microscope for Eye Surgery Operating is a high-precision medical device designed for ophthalmic surgeries and examinations. This portable microscope offers exceptional clarity and ease of use, making it an essential tool for eye care professionals. Certified by CE, it ensures compliance with international safety and quality standards.Key Features:High-Quality Optics
Equipped with advanced optical systems that provide clear, high-resolution images. The YZ20P5 ensures precise visualization during ophthalmic procedures.
Portable Design
Lightweight and compact, the YZ20P5 is designed for portability, making it easy to move between different examination rooms or surgical settings.
Ease of Use
User-friendly controls and ergonomic design ensure that the microscope is easy to operate, even for extended periods. The adjustable focus and illumination settings allow for customization to meet specific surgical needs.
Bright Illumination
Features a powerful LED light source that provides bright, even illumination, essential for detailed eye examinations and surgeries.
Sterilization and Hygiene
Manufactured in compliance with international standards such as CE and ISO, ensuring the highest levels of hygiene and safety. The microscope is designed for easy sterilization and disinfection, making it suitable for repeated use.
Customizable Options
Available in various configurations to meet specific medical needs. Customizable options include different magnification levels, illumination intensities, and ergonomic adjustments.
Durable Construction
Built with high-quality materials, the YZ20P5 is durable and reliable, ensuring long-term performance in demanding medical environments.

Eyepiece Magnification	12.5×/18B
Objective	200MM
Working distance	190MM
Magnification for main microscope	5.3X , 8X , 12X
Diameter of field	38MM , 25MM , 17MMm
Adjustable diopter	±5D
Adjustable range for pupil distance	50~70MM
Illumination source	12V/100W , Halogen Lamp
Illumination type	6°+0° Coaxial illumination
Coaxial illumination	≥20000IX
Reaching range of arm	870MM
Adjustable vertical range	700MM~1100MM
Fine focusing range	30MM
Voltage	AC 220V±10%/50HZ±1HZ , AC 110V±10%/60HZ±1HZ
Power	120VA
Fuse	AC250V T1.25A  ,  AC125V T2.5A
Safety electrical standard	IEC 601-1
Whole packing volume	0.2m³
Carton number	1
Total weight	41kgs

Optical accessories：

1. 1/2“ or 1/4” CCD , CCD Adapter ， Beam Splitter and relevant Cables

2. Straight Binocular Tube ， Universal Structure（ for ENT)

3. Five Objectives：F175mm ， F250mm ， F300mm ， F350mm ， F400mm（12.5X eyepiece）

——————————————————–

Optional accessories：

1. 10X Eyepiece

2. Desktop Parts （Holding Bracket ， Column）

3. Portable Package（including three canvas bags and a buggy）at customer's option
