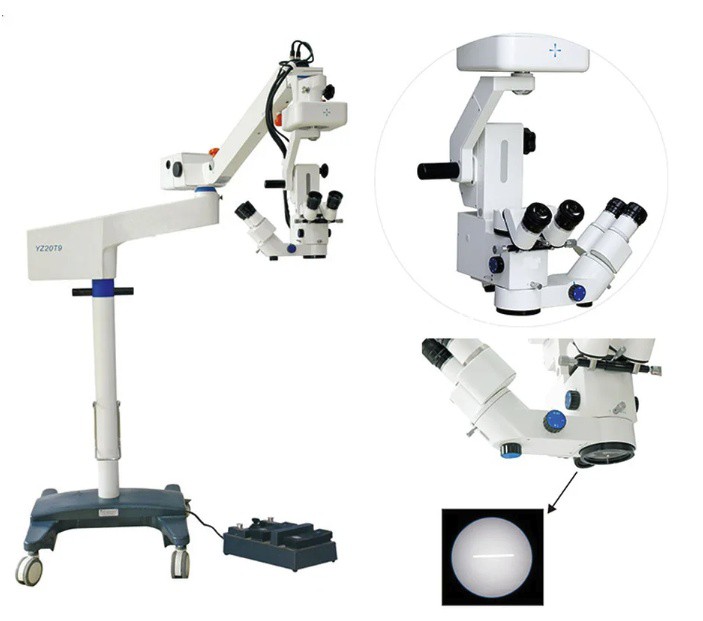

YZ20T9 Operating Microscope

The product is a double binocular operation microscope designed for two men.It has excellent optical performance and it is comfortable to be used.

Features:

Ø Assistant microscope can be converted to opponent microscope to meet the operation needs in ophthalmology and other departments.

Ø Internal beam splitter can be connected with teaching tube and CCD system.

Ø Equipped with three different objective lenses(f200/f250/f300)and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.

Ø Oblique illumination can be used as slit illumination with slit width adjustable and 360° rotatable.

Ø Multi-layer coating technology is used on all lenses to prevent mildew and enhance lens transmittance.

Ø X/Y mobile automatic reset.

Parameters:

Eyepiece Magnification	12.5×/18B
Objective Lens	f=200
Working Distance	190mm
Magnifications for Main Microscope	4×,6×,10×,16×,25×
Magnifications for Assistant Microscope	6×,10×,14×
Diameter of Field	58mm,38mm,23mm,14mm,9mm
Diopter Adjustment	±7D
Pupil Distance	50mm~75mm
Maximal Resolution	119 LP/mm
Focusing Range for Assistant Microscope	≥30mm
Illumination Source	12V/100W,Cold Reflection Halogen Bulb for Medical Use
Illumination Type	6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination	≥50000lx
Oblique Illumination	≥45000lx
Reaching Radius of Arm	1240mm
Adjustable Vertical Range	850mm~1350mm
Fine Focusing Speed and Range	≤2mm/s,≥50mm
Speed for X/Y and Range	≤2mm/s,50mm×50mm
Input Voltage	AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power	330VA
Fuse	AC250V T4.0A,AC125V T8.0A
Electrical Safety Standard	Executive standard :GB9706.1-2007,Class I
Packing Volume	0.786m3,5cartons
Total Weight	213kg
