Operating Microscope YZ20T4

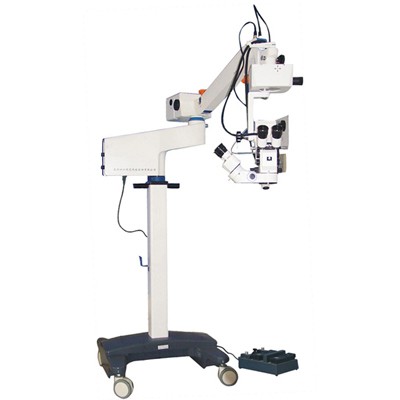

YZ20T4 Operating Microscope

The product is a double binocular operation microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery, etc.

Features:

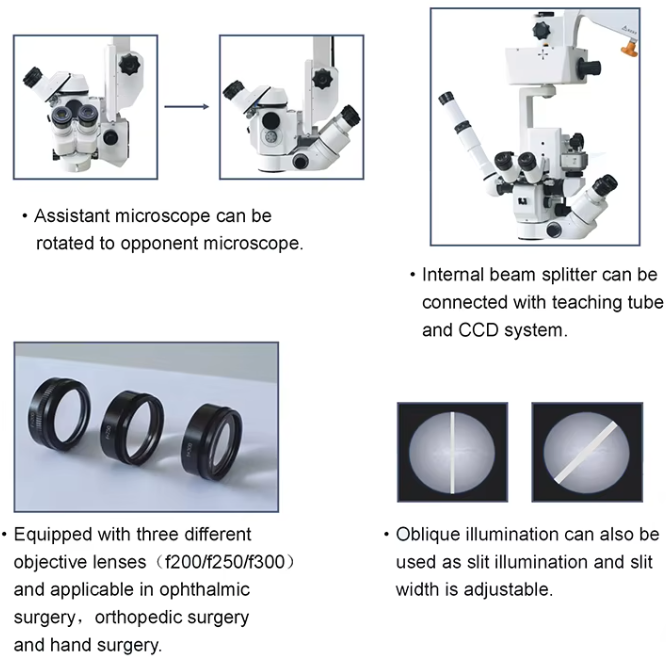

Assistant microscope can be converted to opponent microscope to meet the operation needs in ophthalmology and other departments.

Internal beam splitter can be connected with teaching tube and CCD system.

Equipped with three different objective lenses(f200/f250/f300)and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.

Oblique illumination can  be used as slit illumination with slit width adjustable and 360° rotatable.

Multi-layer coating technology is used on all lenses to prevent mildew and enhance lens transmittance.

X/Y mobile automatic reset.

Specifications:

Eyepiece Magnifications	12.5x/18B
Diopter Adjustment	±7D
Pupil Distance	50mm~75mm
Magnifications for Main Microscope	f200: 4x  6x  10x  16x  25x
	f250: 3.2x  5x  8x  12.8x  20x
	f300: 2.7x  4.2x  6.7x  11x  17x
Magnifications for Assitant Microscope	f200: 6x  10x 16x
	f250: 5x   8x  12.8x
	f300: 4.2x 6.7x  11x
Maximal Resolution	112 LP/mm
Illumination Source	12V/100W, Cold Reflection Halogen Bulb for Medical Use
Illumination Type	6°+0°coaxial illumination of cold light source and 25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable,  and its angle is 360°rotation.
Coaxial Illumination	≥50000lx
Oblique Illumination	≥45000lx
Reaching Radius of Arm	1040mm
Adjustable Vertical Range	850mm~1350mm
Fine Focusing Speed and Range	≤2mm/s,  ≥50mm
Speed for X/Y and Range	≤2mm/s,  50mmx50mm
Input Voltage	AC220V±22V/50Hz±1Hz, or AC110V±11V/60Hz±1Hz
Power	330VA
Fuse	AC250V T4.0A, or AC125V T8.0A
Electrical Safety Standard	Executive Standard: GB9706.1-2007, type I
Packing Volume	0.727 CBM, 5cartons
Total Weight	210kg
