Ultrasonic A/P scan SW1000A/P

Ultrasonic A  scan SW1000A

Ultrasonic Pachymeter SW1000P

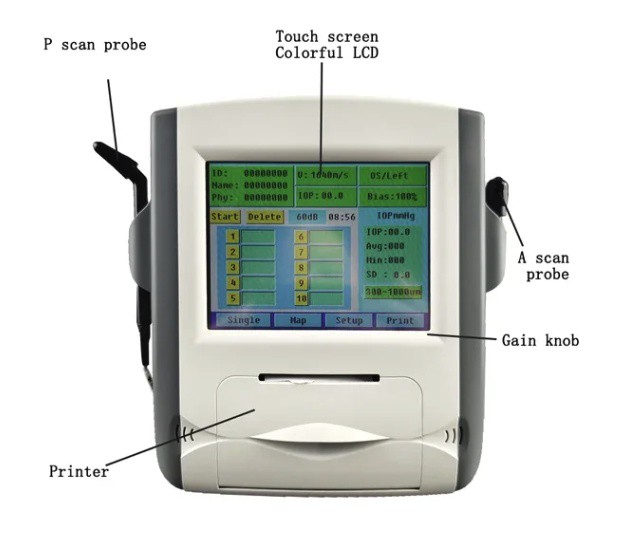

Ultrasonic A/P scan SW1000A/P

Touch Screen Operation: Easy to use with large color display and backlight.

Portable Design: Lightweight and convenient for on-the-go measurements.

Thermal Printer: Includes built-in thermal printer for quick results.

High Precision: Accurate measurements with 5um precision for pachymeter.

Wide Measurement Range: Measure ranges from 300um to 1500um for pachymeter.

Features

Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch

 between IOP measured value and actual value
Can input name, ID and operator's name

 Others: Large color liquid-crystal screen
Touch screen input,

easy operation
Curve freezing: Manual/Auto mode, contolled by pedal
Built-in speed thermal printer

Specifications

A scan probe	10MHz import small size probe, builtin luminotron
Measurement precision	+0. 05mm; with macula lutea trace func-tion
Measurement	Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of measurement	immersion and contact
Eye mode	Phakic Aphakic/Dense/ various I0L
IOL formula	SRKHI、 SRK-T、 BINKHORST- II. HOLL ADAY HOFFER-Q、HAIGIS
Storage	10 cases, 5 readings each case
P scan probe	20MHZ, angle of 45 degrees makes easier operation
Resolution	5um
Measuring range	150um~1500um
Display	SINGLE mode and MAP mode
