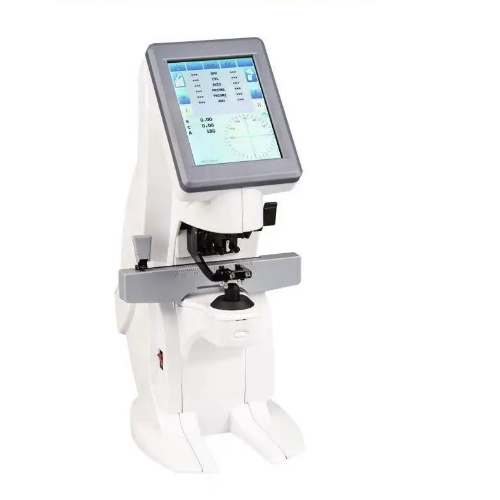

Auto lens meter HV300
HV-3005.6"Color and touch screenAutomatic switching of left and right lens measurement.UV ,blue light, visible light measure .Virtual pupil distance rulerBluetooth supports the data transfer betw···
Introduction
HV-300
5.6 "Color and touch screen
Automatic switching of left and right lens measurement.
UV ,blue light, visible light measure .
Virtual pupil distance ruler
Bluetooth supports the data transfer between auto lensmeter and mobile .(Supply APP ,only available on Android system mobile)
Automatic recognition of progressive lenses
wide range of Sphere measurement :-40D ~+25D
There is PD PH PCL ruler
Technical Data
Sphere | -40D-+25.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 10 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, P-B: |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ18-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (5.6.0") 480*640 |
Printer | Thermal Printer |
Dimension | 244(L) * 192(W) * 409(H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 3.67kgs |
Power Supply | 100~240V 50~60HZ |
Photos
