Auto phoropter AP800
Features:1.The 8-inchtruecolortouchscreen.2.Steamlined design, smooth and modern.3.20-90degree tilt screen.4.fast lens switching can shorten the inspection time and reduce the fatigue of human.5.the b···
Introduction
Features:
1. The 8-inch true color touch screen.
2. Steamlined design, smooth and modern.

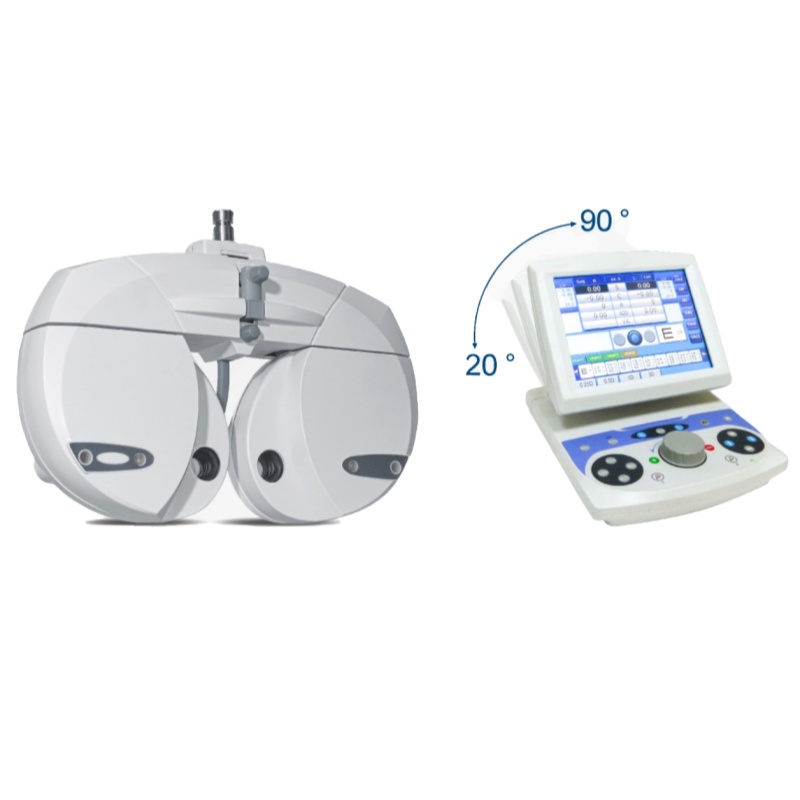

3. 20-90degree tilt screen.
4. fast lens switching can shorten the inspection time and reduce the fatigue of human.
5. the built-in high-brightness LED light makes the near vision chart evenly bright and the visual target is clearer .
Specifications:
Sphere | -19.00~+16.75 D(step:0.25D) |
Cylinder | -8.75~ +8.75D (step:0.25D/) |
Cylinder axis | 0~180 degree (step : 1 degree) |
PD: Far | 48~80mm(step:1 .0mm) |
Working distance | 35~70cm (step: 5 cm) |
Prism base | 0~20Δ (step 0.1) |
VD | 12mm, 13.75mm, 16mm, 18mm, 20mm |
| Auxiliary Lens | PH, Binoculus (1.0mm) |
| RMV/RMH | |
| RL(Right eye ), GL(Left eye ) | |
| Polaroid(Right eye 135º/45ºdegree), (Left eye 45º/135ºdegree) | |
| Prism (Right 6 Δ BU), (Left 3 Δ BD, 10ΔBI) | |
| cROSS CYLINDER LENS (±0.5D aXIS=90º) | |
| PD lens | |
| Rotary Prism | 0-20Δ (0.1Δ /0.5Δ) |
| Cross clinder lens | ±0.25D |
| Retinoscope | +1.50D(67CM), +2.0D(50CM) |
| AP Head size | 360mm*80mm*26mm 2kg |
| Power supply | 100V-240V , 60/50Hz |
