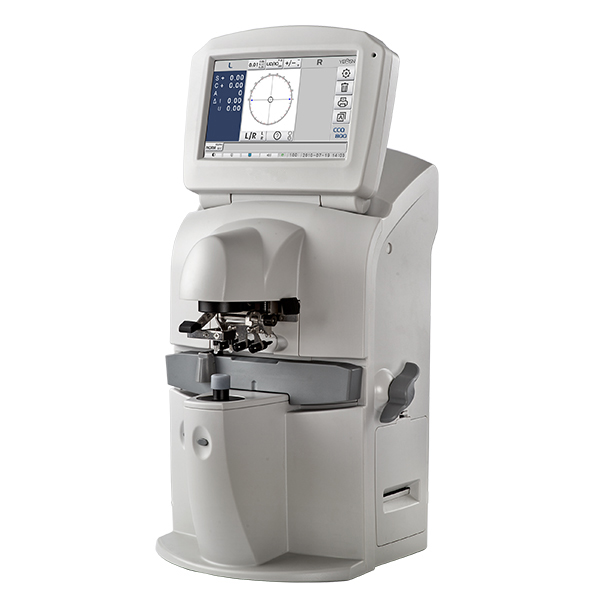

Auto lens meter CCQ800
Auto Identification of Lens TypeSupport auto judgment of lens type and identification of single-vision and progressive lens.Green LED Light SourceNo need to set Abbe compensation when measuring lenses···
Introduction
Auto Identification of Lens Type
Support auto judgment of lens type and identification of single-vision and progressive lens.
Green LED Light Source
No need to set Abbe compensation when measuring lenses with different refractive indexes.
Hartman Measurement
Adopts multi-points collection optical system.
Equipped with 7-inch industrial HD touch screen with outstanding image quality.
Unique multi-core processor.
Strong data processing core,supporting accurate measurement of low astigmatism
and low transmittance lens
Supports measurement of PD, PH,UV ;built-in thermal printer.
Sphere lens | -25.00D~+25.00D,Step0.01D/0.06D/ 0.12D/0.25D |
Cylinder lens | -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D |
Add | -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D |
Contact lens | -20.00D~+20.00D,Step0.01D/0.06D/ 0.12D/0.25D |
Axis | 0°~180°,Step1° |
Prism basal angle | 0°~360°,Step1° |
Prism power | 0~20 Δ,Step0.01Δ |
Lens diameter | ø10mm~ø100mm |
Lens center thickness | ≤20mm |
Lens pupil distance | 40mm ~82mm |
Size and weight | 235(W)×246(D)×487(H)mm/5.45kg |
Power supply | Output DC 12V 3.34A |
Photos
