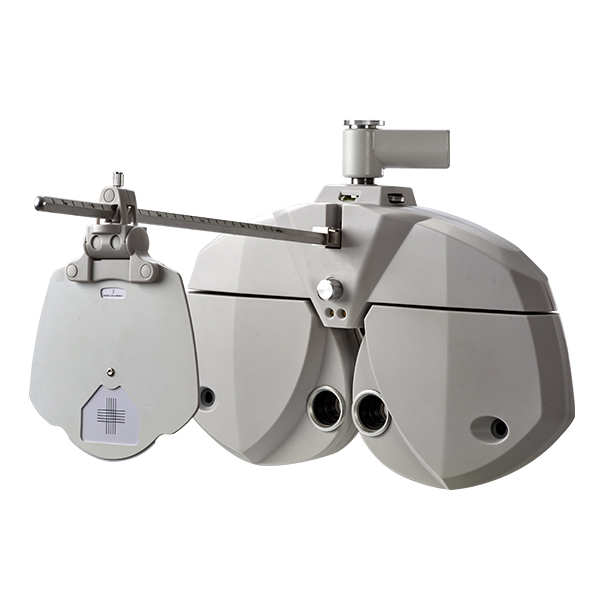

Auto phoropter VT2100

Auto phoropter VT2100Tablet Touch ControlConnected with control terminal through built-in WIFI or Bluetooth, supporting multi-touch/gesture control.Real-time Guiding SystemBuilt-in graphical operation···

Inquire Now Next Product

Introduction Photos

Introduction

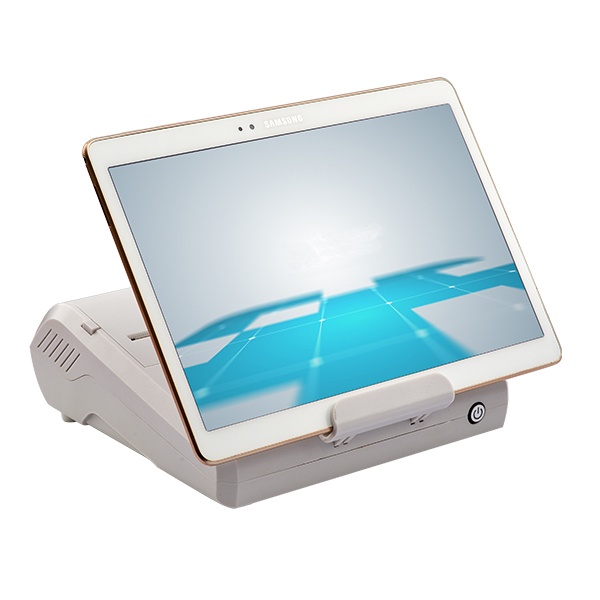

Tablet Touch Control

Connected with control terminal through built-in WIFI or Bluetooth, supporting multi-touch/gesture control.

Real-time Guiding System

Built-in graphical operation guiding system, zero learning cost, easy operation.

Ultrathin Design

Ultrathin body with maximum thickness of 92 mm.

Advanced design of drive system with all-motor drive and low noise.

Strong responsive operation framework with more efficient human-computer

interaction system than traditional control panel.

Supports Retina screen with outstanding image quality.

Supports multi-touch and gesture control.

Supports wireless network, connection with LM/AR, quick optometry data exchange.

Sphere lens	-29.00D~+26.75D, Step 0.12D/0.25D/1D
	-19.00D~+16.75D(Cross Cylindrical Lens or Prism)
Cylinder lens	0.00D~±8.75D, Step 0.25D/1D
Axis	0°~180°,Step 1°/5°
Pupil distance	48mm~82mm(Far)
	49mm~75mm(Near,Working Distance35cm)
Rotary prism	0~20Δ,Step 0.1Δ,0.5Δ
Cross cylinder	±0.25D/±0.50D(Auto),±0.50D(Fixed)
Size and weight	Refractor 400(W)×92(D)×275(H)mm/3.9kg
	Printer 200(W)×200(D)×80(H)mm/0.6kg

Photos
