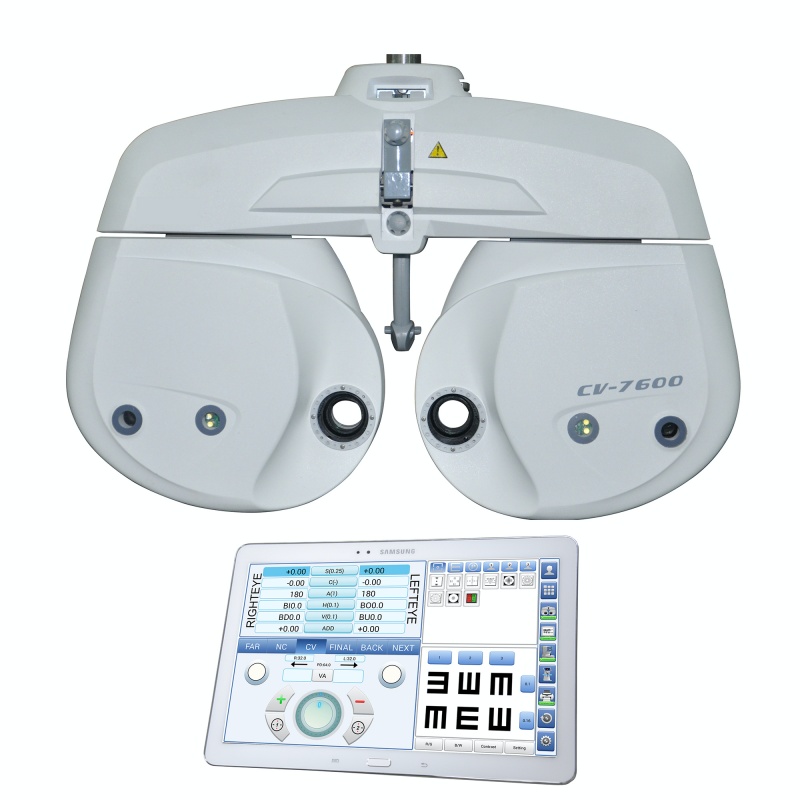

Auto phoropter CV7600
This model auto phoropter can connect to other products by blue tooth.Auto ref/keratometer , KR9600 , KR9000, KR9200, RM9000,RM9600 ,RM9200LCD vision chart, CM1900C, CM1800Auto lensmeter , TL6500 , TL···
Introduction

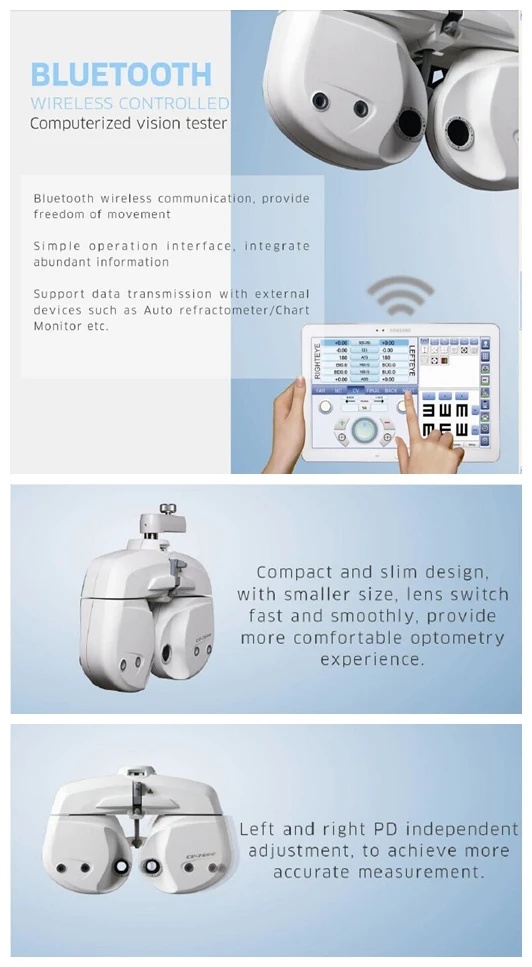

This model auto phoropter can connect to other products by blue tooth.
Auto ref/keratometer , KR9600 , KR9000, KR9200, RM9000,RM9600 ,RM9200
LCD vision chart, CM1900C, CM1800
Auto lensmeter , TL6500 , TL6800C
Technical Data
Sphere | -19.00D~+16.75D 0.25D/0.50D/0.50D/1.00D/3.00D steps |
Cylinder | -8.75D~+8.75 D 0.25D steps |
Axis angle | 0~180° 1°/5°steps |
Pupillary Distance | Distant range: 52~80mm 0.5/1mm steps |
Close range: 48-76mm 0.5/1mm steps | |
Rotary Prism | 0~20 0.1 /0.5 /1.0steps |
Cross Cylinder Lens | ±0.25D |
Plane Retinoscope | +1.50D(67cm) +2.00D(50cm) |
Auxiliary Lens | PH Binoculus(1.0mm) |
RMV,RMH | |
RL(Right eye),GL(Left eye) | |
Polaroid(Right eye 135°/45°; Left eye 45°/135°) | |
Prism(Right 3ΔBU/ 6ΔBU, Left 3ΔBD/ 10ΔBI | |
Cross Cylinder Lens (±0.50D Axis=90°) | |
PD Lens | |
CV Head Size | 381mm×286mm×111mm 3.8KG |
Table Size | 243mm×171mm×7mm 0.5KG |
CV Head size | 246mm×205mm×185mm |
Power Supply | AC 220V 50HZ or AC 110V 60HZ,90W |
Photos
