Product Details
FA-100K Auto Refractometer Keratometer
|
Features: |
|

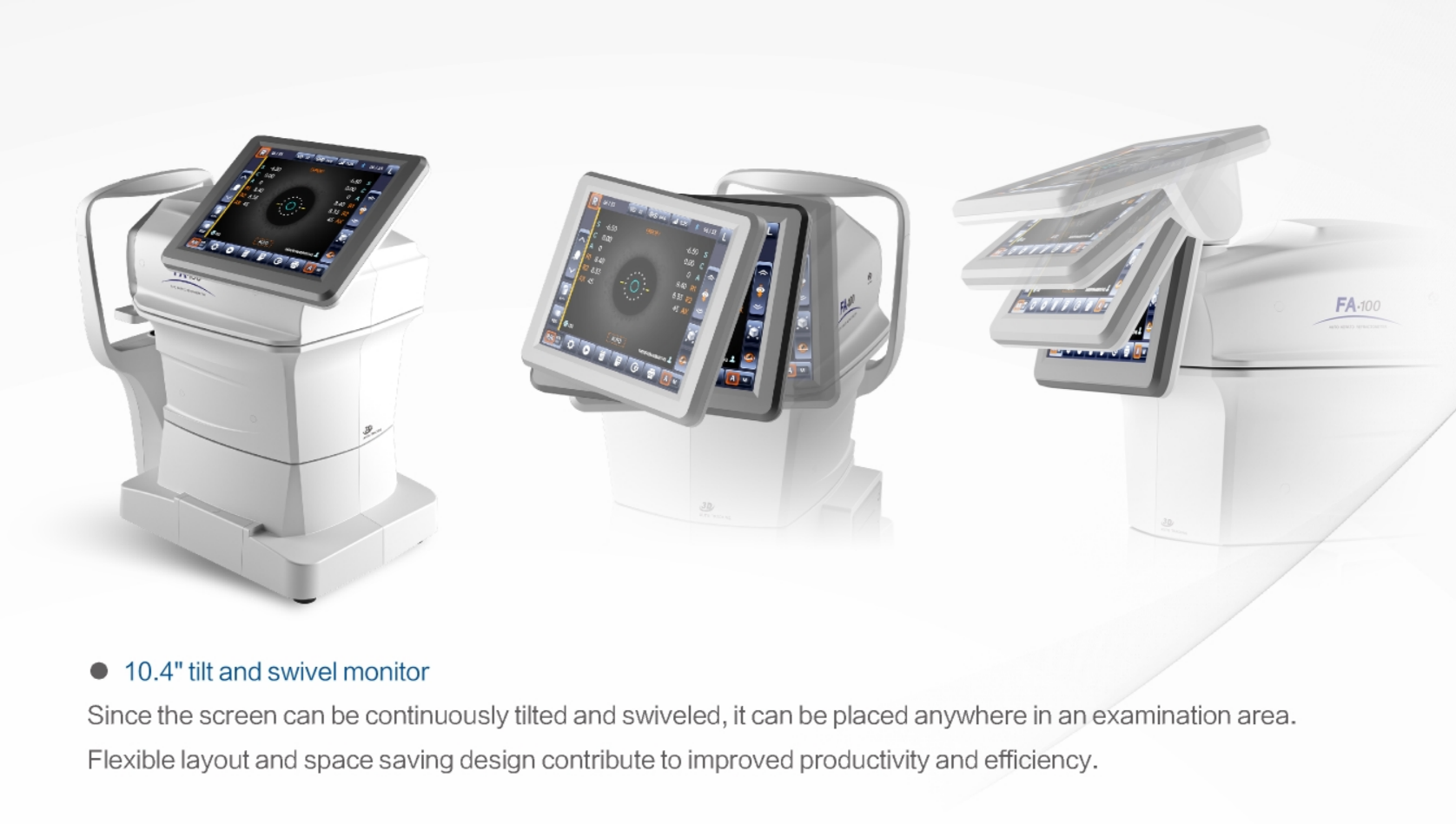

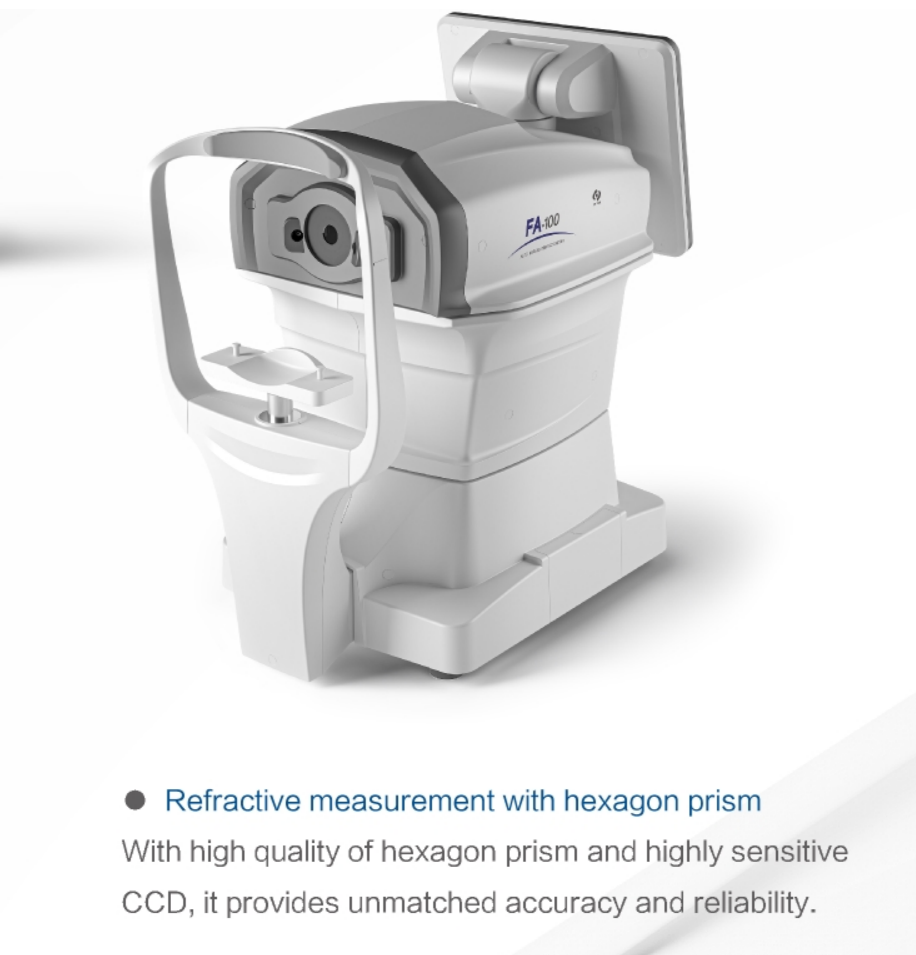

(1)3D tracking auto focus Just rotate to any position, it will automaticaly focus the eye and get the value. (2) Refractive measurement with hexagon prism With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability. (3) Built-in thermal printer Automatic printing and paper cutting (4)10.4’’ tilt and swivel monitor Since the screen can be continuously tilted and swiveled, it can be placed anywhere in an examination area. Flexible layout and space saving design contribute to improved productivity and efficiency. |
Parameters:
|
Range of measurement |
Sphere |
-25~+20D (VD=12) 0.125D step |
|
Cylinder |
-8~+8D 0.125D step |
|
|
Axis |
0°~180° (1°step) |
|
|
PD |
5~90mm, 1mm step |
|
|
Min Pupil Size |
2.0mm |
|
|
Keratometry |
Radius of curvature |
5.0~10mm (increment: 0.01mm) |
|
Corneal power |
33.75~67.50D(when comer equivalent refractive index is 1.337), (increment selectable from 0.12,0.25D) |
|
|
Corneal astigmatism |
0.0~0.8D(increment selectable from 0.12,0.25D) |
|
|
Axis |
1~180, (increment 1°) |
|
|
Corneal diameter |
2.0~15.0mm (increment 0.1mm) |
|
|
Others |
Chart |
Follow-up colorful fogging chart system |
|
Display |
10.4’ TFT LCD |
|
|
|
57mm Thermal print |
|
|
Power supply |
220V±10% , 50Hz 60VA |
|
|
Memory of data |
10 measure value for each right and left eye |
|
|
Serial interface |
USB,RS-232C,Blue-tooth, WIFI,4G |
|
|
Dimension |
514mm*284mm*465mm |
|
|
Weight |
~20KG |
