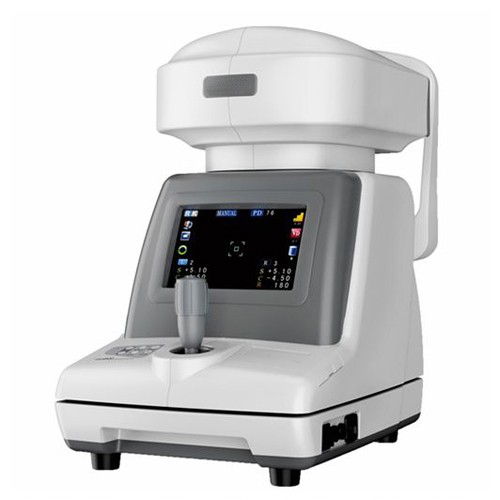

Auto ref/keratometer FA6800K

Auto ref/keratometer FA6800K

Auto refractometer FA6800



function
1.tiltable color touch screen. keratometer optional
2.auto tracking optical system
3.motorized chinrest



Auto tracking optical system

Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.

Japan’s mature optical path system, , humanized automatic mist measurement process , to reduce the error caused by adjustment, more precise measurements.

Light rack with integral casting , CNC machining, measuring system, is more stable , good consistency.

5.7” tiltable color LCD for user friendly operability.

PD Automatic measurement function, automatically PD value.

One key lock function, quickly locking mobile platforms.

Motorized chinrest

Auto detachment printer



auto refractometer technical data



Sphere	-20~+20D(VD=12)0.125D step
Cylinder	-8~+8D,0.125D Step
Axis	0~180°1°step
PD	45~88mm, 1mm step
VD	0mm, 12mm, 13.75mm
Min.Pupil Size	2mm
Radius of curvature	5.0~10mm(increment:0.01mm)
Corneal Power	33.75-67.50D (when corner equivalent refractive index is 1.337) (increment selectable from 0.12, 0.25D)
Corneal astigmatism	0~8D(increment selectable from 0.12, 0.25D)
Axis	1~180°(increment:1°)
Corneal diameter	2.0~14 mm(increment:0.1mm)
Memory of data	10 measure vature for each right and left eye
Chart	Follow up colorful fogging chart system
display	7” TFT LCD
print	Thermal printer
Power supply	220V/110V, 50/60Hz
Dimension	478*268*472mm
Weight	-20kg(44lb)
