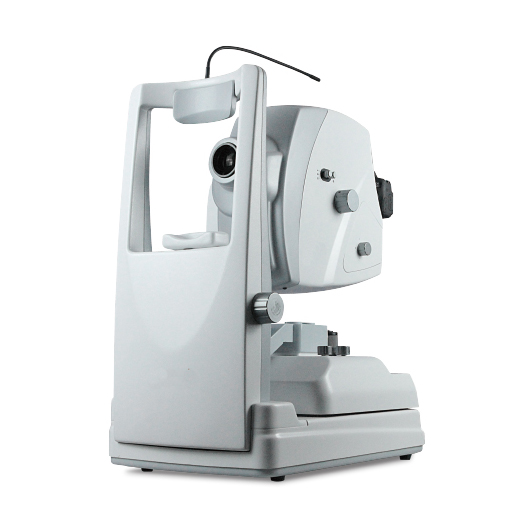

Fundus camera TNF507 FFA

TNF507 Fundus camera used for taking the image of retina of your eye, it has four image types which are Color, non-mydriatic color, FFA and Red-free.

Product features:
●Fundus camera with Non-mydriatic+FFA
●Perfect for magnification to observe details
●Convenient installation
●Available data port for transmission

Technnical parameters:
➣Image type: Color,non-mydriatic color,FFA, Red Free
➣FOV: 50°
➣Working distance: 42mm
➣Retinal observation mode: LCD
➣Minimum pupil diameter: Non-Mydriatic: 3.5 mm (under small pupil mode)
➣Fixation target: LED lights
➣Diopter compensation: ±15D
➣Auxiliary focus mode: 2 light spots for focus
➣Focus type: Splitting line focus/ auto focus

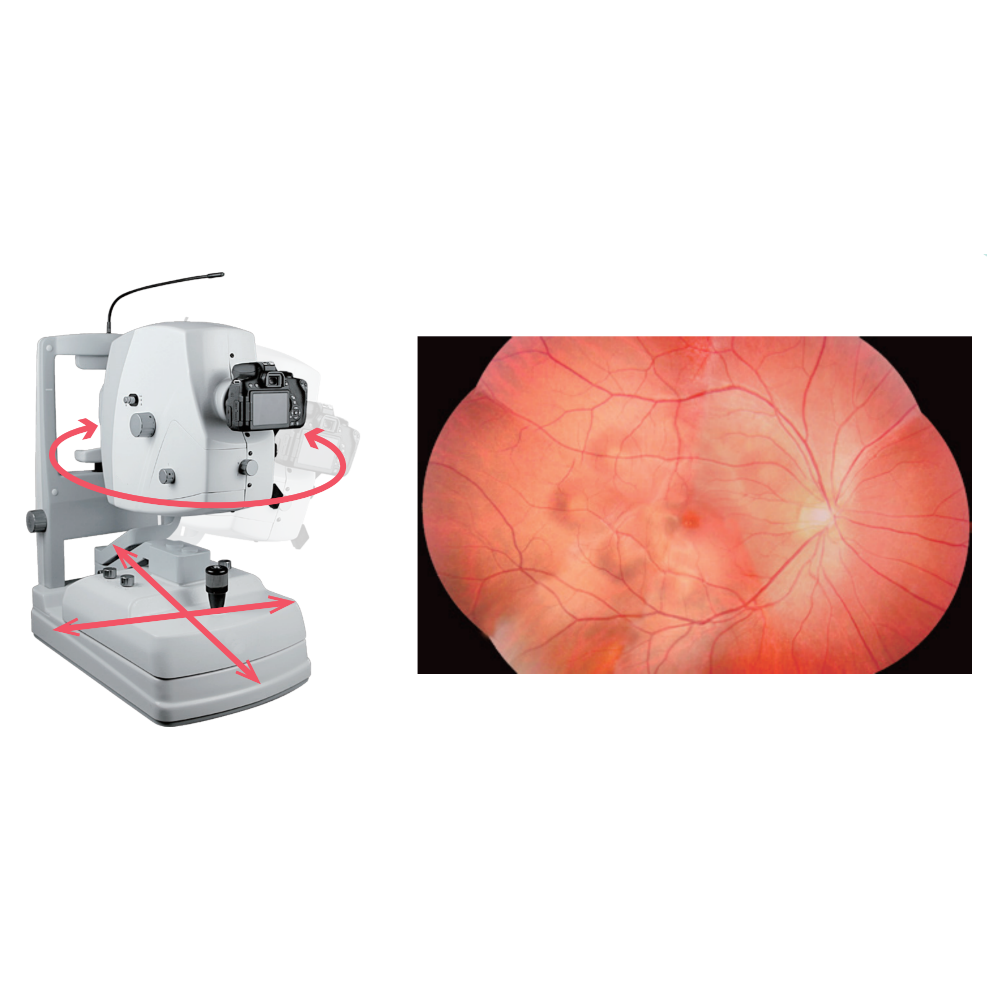

➣Base movement: Forward and backward : 80mm  Left and right:100mm
➣Tilting range: Up:15° Down:10°

➣Panning range: Left:30°  Right:30°

Optional:

SLR imaging system,external Canon Camera with 24MP
