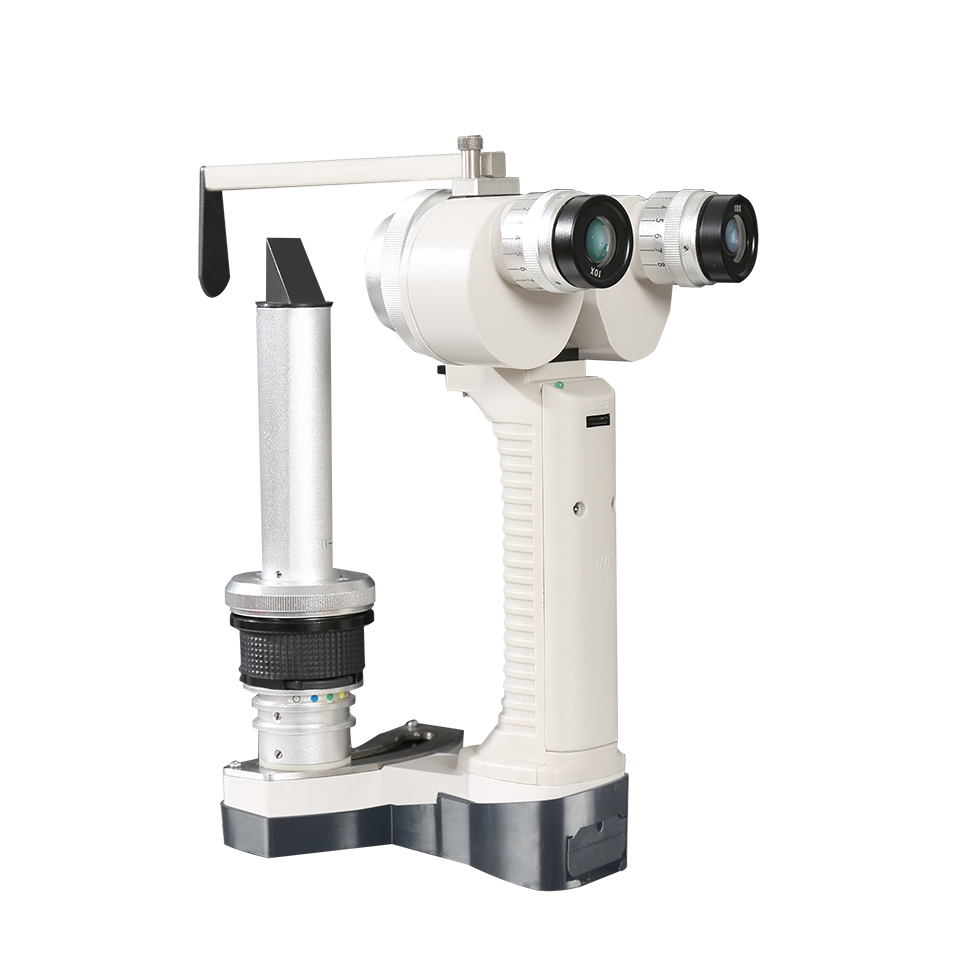

Portable Slit lamp SLM-6L/6M/6H
Portable Slit Lamp-Portable slit lamp adopts high-brightness, cold-light illumin
Product Details
Portable Slit Lamp
–Portable slit lamp adopts high-brightness, cold-light illuminator, without external power supply.
–High-brightness LED, cold-light illuminator, its brightness up to 30000 LUX, service life more than 50000 hours.
–Sharp slit, the width can be adjusted continuously.
–Telescopic forehead-rest, easier to observe and adjust the diopter.
–Easier to adjust the magnification by resolvable objective lens.
–Small and light, only 700g including battery.
–Full power supplied by battery can drive the slit lamp for 5-6 hours.
|
Item / Model |
SLM-6L |
SLM-6M |
SLM-6H |
|
|
Microscope |
Microscope Type |
Converging |
||
|
Objective Lens |
10× |
10× 16× |
10× 16× |
|
|
Total Magnifications |
10× |
10× |
10× 16× |
|
|
Working Distance |
81mm |
|||
|
Intraocular Distance |
45mm-78mm |
|||
|
Diopter Adjustment |
-D8 ~ +D8 |
|||
|
Illumination |
Slit Width |
0-12mm Continusous |
||
|
Slit Height |
12mm |
1~12mm |
1-12mm |
|
|
Slit Angle |
Horizontal+30° |
|||
|
Light Spot Diameter |
Φ12mm |
Φ0.2mm ;Φ1mm; Φ5mm; Φ12mm |
||
|
Filters |
Heat absorption; Yellow; Redfree (Green); Cobalt Blue |
|||
|
Illumination Bulb |
High-Brightness White LED |
|||
|
Brightness |
30000Lux |
|||
|
Power |
5VA |
|||
|
Power |
Charging Voltage |
AC100~240V, 50/60Hz |
||
|
LED Working Voltage |
DC 3V, 350mAh |
|||
|
Battery |
Li-ion Battery; 7.4V, 680mAh, Full Battery can supply 5-6 hours continuously |
|||
|
Weight and Dimension |
Dimension |
169.5 ×109.5 ×228.5mm |
||
|
Weight |
700g (Including Battery) |
|||
