Slit lamp Microscope TSL-5

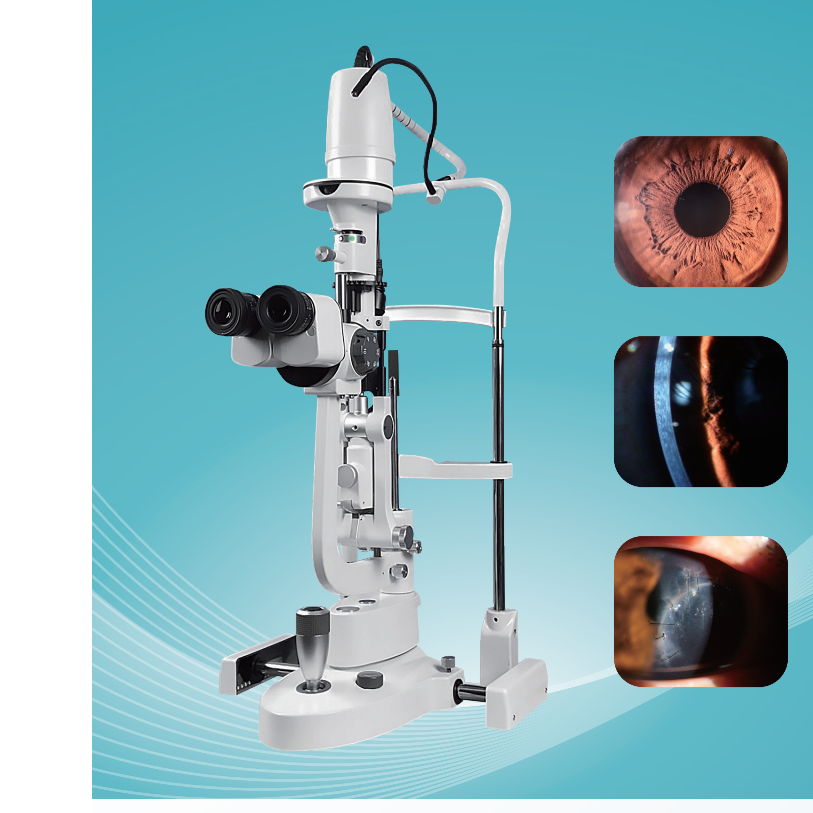

TSL-5 Slit Lamp Microscope

adopts high-definition Galileo optical system, applies the multi-layer coating

technology to eliminate interference from other light sources. It provide ophthalmologists and opticians with clear,

bright and perfect anterior segment images.

Product features:
●5 modes for magnification
●Multiple filter options
●LED light source
●Enhance brightness for background color

Technical parameters:
➣Microscope type：Galilean parallel type
➣Magnification mode：6×、10×、16×、25×、40×
➣Eyepiece magnification: 12.5×
➣Refractive diopter adjustment:-6D～＋6D
➣Slit light adjustment: Continuous adjustment
➣Slit width: 0mm～14mm continuously adjustable
➣Slit length: 0.2mm,1mm～14mm continuously adjustable
➣Slit angle: 0°～180°continuously adjustable
➣Slit inclination:  5°、10°、15°、20°
➣Filter:Heat absorption filter,dimmer filter,red-free filter,cobalt blue filter
➣Aperture diameter:Ф14、Ф10、Ф5、Ф3、Ф2、Ф1、Ф0.2（mm）
