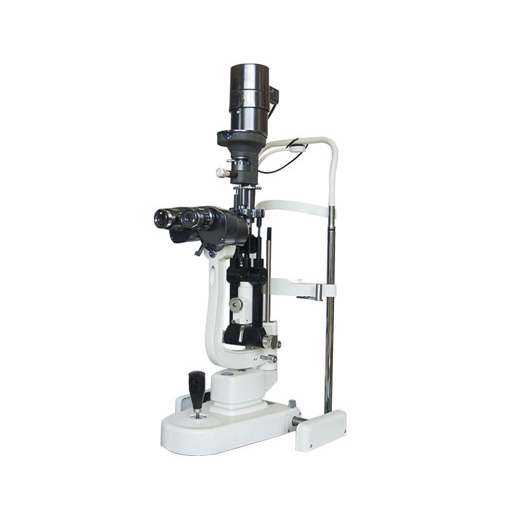

Slit lamp Microscope YZ5F
Characteristics:·Imported Schott optics from Germany reducesoptical distortion, increases clarity and depth of focus.·All theOptical lenses are moistureproof,mildewproof and anti-reflected treated.····
Introduction
Characteristics:
·Converging stereoscope microscope provides the clear images.
·Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
·All the optical lenses are moistureproof, mildewproof and anti-reflected treated.
·Three-step magnifications (10X、16X，25.6X) can be changed by lever and 10X&16X eyepieces are available.
·All the joints can be connected by accessories with international standards.
Specificatiions:
Microscope Type | Converging stereoscope microscope |
Objective Magnification | Two Steps Magnifications |
Eyepiece | 10x and 16x |
Magnifications （Field of View） | 10x（φ18mm）、16x（φ14.5mm） 16x（φ11.25mm）、25.6x（φ9mm） |
Pupil Distance | 10x Eye Piece 55mm～82mm 16x Eye Piece 51mm～78mm |
Diopter Adjustment | 10x Eye Piece ±8D 16x Eye Piece ±10D |
Slit Width | 0mm～9mm adjustable(Slit is round when the slit width is 9mm) |
Slit Height | 1mm～8mm adjustable |
Slit Angle | 0°～180°adjustable |
Slit Inclination | 5°,10°,15°,20°,four steps adjustable |
Diameter of Light Spot | φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm |
Filter | Heat Absorption、Grey、Redfree、Cobalt Blue |
Illumination Bulb | 12V/30W Halogen Bulb |
Input Voltage | AC220V±22 V ,AC110V±11 V |
Electrical Safety Standard | Conform to Standard:IEC601-1,Class I,Type B |
Packing Volume | 720mm x 495mm x 480mm |
Total Weight | 24Kg |
Optional Accessories | R type , T type Applanation Tonometer、 Measuring Eye Piece、 Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens |
