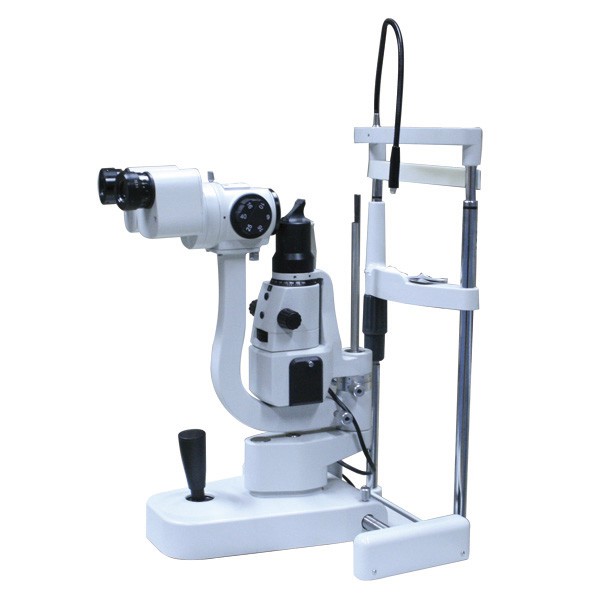

Slit lamp Microscope YZ5X1
Characteristics:·Two-step magnifications: 10×、16×·All the Optical lenses are moi
Product Details
Galilean Stereoscopic Microscope Provides the practitioners unsurpassed clarity
and sharpness,and avoid double images.
• Two-step drum magnification.
• Optional accessories : Teaching Tube.CCD camera and Tonometer.
| Specifications | ||||
| Microscope Type | Galilean Stereoscopic Microscope | |||
| Objective Magnification | Five Steps Drum Magnifications | |||
| EyePiece | 12.5x | |||
| Magnifications (Field of view) | 6×(Φ33mm) 10×(Φ22.5mm) 16×(Φ14mm) 25×(Φ8.8mm) 40×(Φ5.5mm) | |||
| Pupil Distance | 55mm ~ 75mm | |||
| Diopter Adjustment | -5D ~ +3D | |||
| Slit Width | 0mm ~ 14mm adjustable(slit is round when the slit width is 14mm) | |||
| Slit Height | 1mm ~ 14mm adjustable | |||
| Slit Angle | 0° ~ 180° adjustable | |||
| Slit Inclination | 5° ,10°,15°,20° four steps | |||
| Filers | Heat Absorption, Redfree, Cobalt blue | |||
| Diameter of Light Spot | Φ14mm,Φ9mm,Φ5.5mm,Φ0.3mm | |||
| Power Supply | AC110V/220V±10%,50Hz/60Hz | |||
| Packing Volume | 680mm×550mm×475mm | |||
| Total Weight | 20Kg | |||
| Optional Accessories | Applanation Tonometer,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens,Teaching Tube | |||
