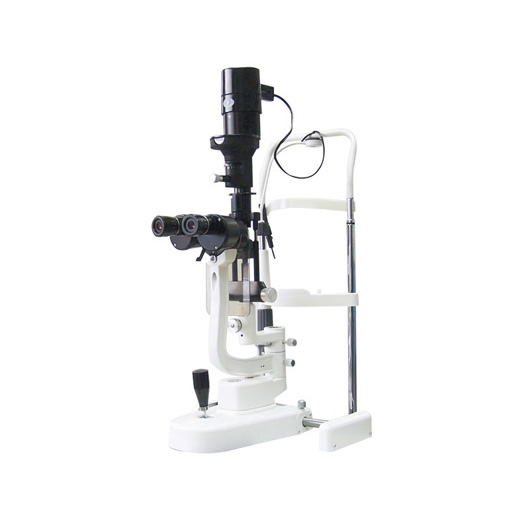

Slit lamp Microscope YZ5J

Characteristics:·Two-step magnifications: 10×、16×·All theOptical lenses are moistureproof, mildewproof and anti-reflected treated.·Excellent optical performances.·Convenient and compact.Specifi···

Inquire Now Next Product

Introduction Photos

Introduction

Characteristics:

·Two-step magnifications: 10×、16×

·All the Optical lenses are moistureproof, mildewproof and anti-reflected treated.

·Excellent optical performances.

·Convenient and compact.

Specifications:

Microscope Type	Converging stereoscope microscope
Objective Magnification	Two Steps Magnifications
Eye Piece	10x
Magnifications（Field of View）	10x（φ18mm）、16x（φ14.5mm）
Pupil Distance	55mm～82mm
Diopter Adjustment	±6D
Slit Width	0mm～9mm adjustable(slit is round when the slit width is 9mm)
Slit Height	1mm～8mm adjustable
Aperture of Diameter	φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm
Slit Angle	0°～180° adjustable
Slit Inclination	5°,10°,15°,20°,four steps adjustable
Diameter of Light Spot	φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm
Filter	Heat Absorption、Grey、Redfree、Cobalt Blue
Illumination Bulb	12V/30W Halogen Bulb
Input Voltage	AC220V±22 V ;AC110V±11 V
Electrical Safety Standard	Conform to Standard:IEC601-1,Class I,Type B
Packing Volume	720mm ´ 495mm x 480mm
Total Weight	23Kg
Optional Accessories	R type , T type Applanation Tonometer、 Measuring Eye Piece Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens

Photos
